Choosing Grain Bin Unloading Attachments
Slide valves, poly boots, collars, and auger boxes connect a feed bin's hopper outlet to its unloading equipment. Select the components for your bin and the way you plan to dispense feed.
Before ordering, match the bin collar diameter and bolt pattern, hopper angle, boot outlet dimensions, and auger size. Parts with similar names may have different mounting patterns; compare the product specifications and drawings for each connection.
Descriptions and Order of Attachment
Below are the descriptions of the most popular grain bin attachments for controlling the flow of feed when unloading the bin. They are listed in order from where the hopper walls come together at the collar, all the way through the end dispensing point.

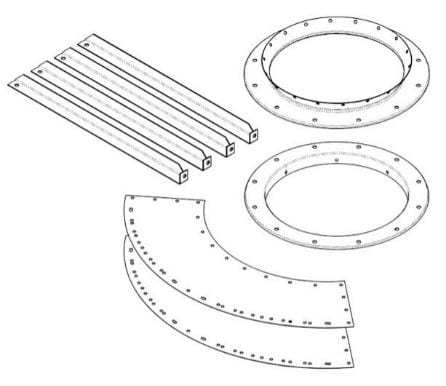

Grain Bin Collars
The bin collar allows for the attachment of various accessories and provides a seamless transition to the poly boot from which everything is hung. These one-piece collars are designed to fit 16-in diameter bin openings and come in three different top angles to facilitate a smooth transition to the cone walls.
- For 6' diameter bins: 60-degree angle with 24 holes (approx. 2 ¼ inches apart)
- For 7' diameter bins: 67-degree angle with 24 holes (approx. 2 ¼ inches apart)
- For 9' diameter bins: 60-degree angle with 18 holes (approx. 3 inches apart)
Once attached to the bin, the bottom collar serves as the foundation for the integration of slide valves, poly boots, and unloaders. This configuration allows for the controlled dispensing of grain and other materials, providing a seamless and efficient grain-handling solution for unloading your bin.

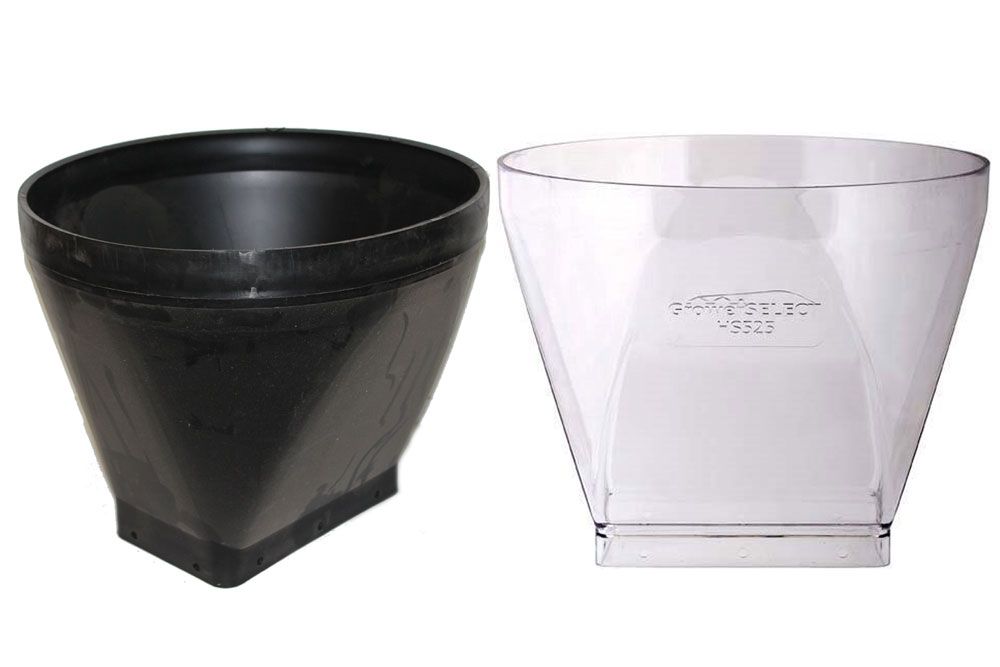

Feed Bin Boot
A Grain Bin Boot is what all of your unloading attachments hang from the base of a grain bin. The Poly Boot is securely fastened to the base of the bulk feed bin through a collar and is seamlessly connected to the slide valve below it. This strategic connection creates a transition from the round bottom opening of the bin, where the taper hopper sections converge, to the rectangular entrance of either the auger unloader or the slide valve itself. The boot provides a transition between the bin outlet and the attached unloading equipment. Flow control depends on the selected slide valve or unloader; the boot itself does not meter feed or protect downstream equipment from overloading.

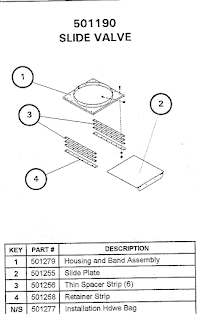

Slide Valve
In conjunction with the Grain Bin Boot, the Slide Valve assumes a critical role. Located at the bottom of the boot, the slide valve functions as a regulatory mechanism. This manual gate lets the operator regulate or shut off feed flow. Monitor the receiving equipment or container during unloading; the gate does not automatically prevent overfilling.
Auger Boxes for Unloading
The auger box is a popular optional accessory that can be hung below and from the poly boot. The box serves as a strategic collection point for the auger, streamlining the grain-handling process. The included slide valve can also be used to regulate the flow of feed running to the auger if necessary.
When it comes to efficiently unloading bulk grain from your feed bin, our Auger Unloader Box is the solution you need.
Be sure to invest in quality bin attachments to ensure a steady flow of feed for years to come.
Contact Barn World for help matching unloading components or for a shipping quote to your farm.
