Continuous Fence

Continuous Fence Panels for Cattle, Pastures and Ranch Facilities

Continuous fencing is a practical way to build a long, consistent steel rail fence without fabricating every horizontal run from individual pipe lengths. Compatible panels connect end to end, allowing the rails to carry a continuous appearance across straight stretches of a pasture, livestock area, or property entrance. The system provides a defined barrier while giving a ranch or farm a clean, organized fence line.

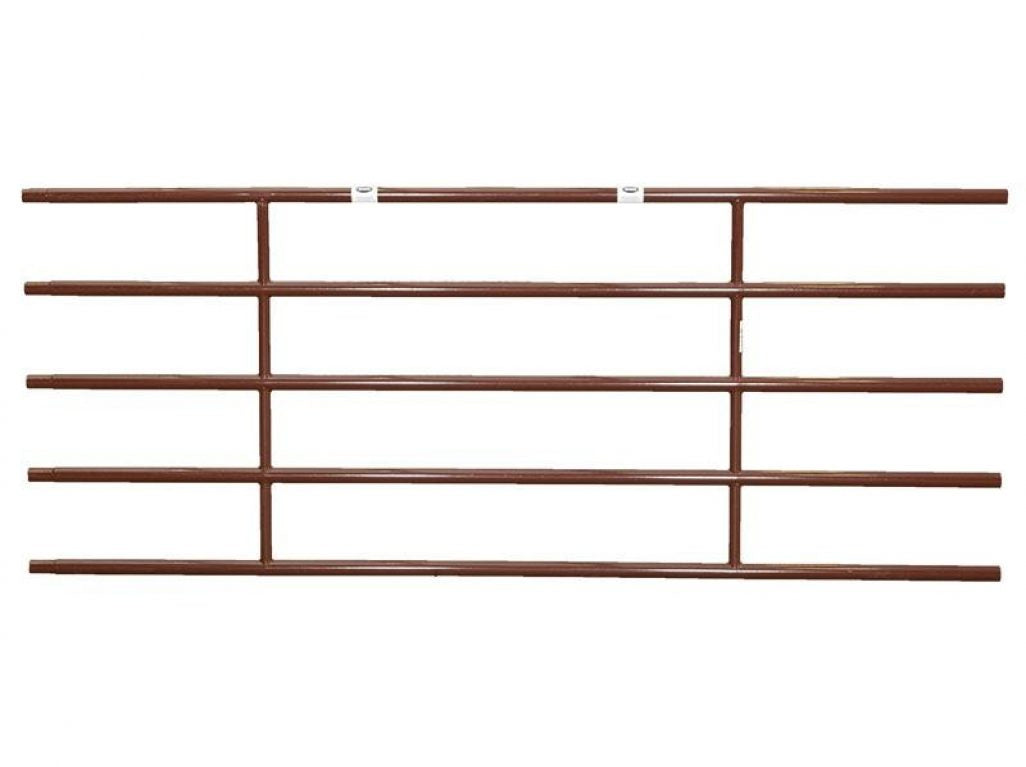

Barn World's Hi-Qual continuous fence line includes 10-foot and 20-foot steel panels, with selected 1-1/2-inch and 2-inch pipe options and four-, five-, or six-rail arrangements. Notched, welded uprights help support the horizontal rails, and the panels have a powder-coated finish. The best configuration depends on the animals being contained, the intended use, the supporting posts, and the amount of livestock pressure the fence will encounter. The panels are one part of a complete fence system; proper posts, mounting hardware, gates, corners, and installation matter just as much.

What Makes a Fence “Continuous”?

Rather than stopping each section with a separate framed end, continuous fence panels use compatible connecting rail ends. A swaged end is reduced in diameter so it can fit into the open end of the adjacent panel. When the sections are aligned and installed correctly, their horizontal rails appear to run through the fence line with fewer visual interruptions.

This connection style can simplify planning long, repetitive runs. It does not eliminate the need for supporting posts or secure attachments, and the joint itself should not be treated as a substitute for a properly designed fence support. A finished installation also needs appropriate treatment at corners, gates, and termination points. For best results, use components designed to work with the chosen tubing diameter, rail count, and panel height.

Choosing Between 10-Foot and 20-Foot Continuous Fence Panels

Panel length affects how a fence can be laid out, shipped, handled, and installed. A 20-foot panel can cover more of a long, relatively straight stretch with fewer panel-to-panel connections. A 10-foot panel may be easier to incorporate where runs are shorter or there are more transitions, gates, and changes in direction. Both lengths still require an installation plan based on actual installed dimensions and post locations.

Long panels are not necessarily the most economical choice for every project. Freight rates, unloading equipment, site access, and the amount of cutting or fitting at the ends of each run can change the overall installed cost. Measure each straight segment separately and account for openings, corners, and end treatments before calculating panel quantities. Do not assume that dividing the measured perimeter by the nominal panel length gives an exact final count; connections and layout details may affect the required quantities.

Understand Rail Count, Tubing Diameter, and Fence Height

Rail count describes the number of horizontal pipes in the panel. Tubing diameter describes the size of those pipes. Panel height and spacing between rails influence how a fence functions for different animals. A larger tube or an additional rail may be appropriate for some installations, but neither feature guarantees that a particular fence is strong enough for every livestock-handling situation.

The following are the listed configurations for the 20-foot Hi-Qual continuous fence panels. The 10-foot product should be checked separately for its current available options; not every combination is offered in both lengths.

These are product configurations, not universal recommendations for animal containment. Consider the mature size of your livestock, whether young animals are present, the spacing and height of the rails, animal behavior, and how much pressure cattle may put on the fence. Where horses or smaller livestock will use an area, evaluate openings and entrapment hazards particularly carefully. An experienced installer or agricultural fencing professional can help determine an appropriate layout for the specific animals and setting.

Plan the Fence Line Before Buying Materials

A successful fencing project starts with a measured layout. Walk the proposed boundary and identify long straight runs, gate openings, changes in grade, corners, existing posts, drainage areas, and any utilities or obstacles. Sketch the layout and label each segment so the straight panels, connecting components, and hardware can be estimated separately.

Also check property boundaries, local fence requirements, and access needs before placing permanent posts. A fence installed in the wrong location or without adequate gate clearance can be expensive to move later. Where the fence meets an existing structure, verify that the structure and connection details are appropriate for the new load and intended use.

For an irregular boundary, plan how changes of direction will be handled instead of trying to force rigid panels into bends they were not designed to make. Site contours, slopes, and uneven ground also deserve attention. The bottom rail should not create an unsafe gap where an animal can slip under it, nor should a low spot create a place where livestock become caught. The installation method needs to follow the manufacturer’s recommendations and site conditions.

Posts, Spacing, and Proper Support

Continuous fence panels have vertical uprights built into the panel, but those welded uprights are not interchangeable with the ground-set support posts. The fence still depends on suitable wood or steel supports, correct anchoring, and compatible attachments. Post size, depth, footing, and spacing should be determined for the soil, terrain, loads, and selected fencing system rather than assumed from panel length alone.

Areas with greater pressure often need special attention. Cattle may lean or push near gates, watering areas, crowding points, and feed locations. A decorative boundary or low-pressure pasture run may have very different support requirements from a working pen or livestock-handling alley. Plan additional strength where required and obtain professional design advice for facilities in which animals will be crowded or restrained.

When laying out supports, consider the locations of panel joints and how connections will be secured. Use the manufacturer’s current post and mounting instructions. Do not substitute arbitrary post spacing from wire fencing, wood board fencing, or another product type for this rigid steel-panel system.

Mounting Clips, Corners, and Fence Ends

Good connections keep the fence aligned and help transfer loads to its supports. The Hi-Qual system includes mounting clips and related components in sizes intended for different tubing diameters. Select clips to match the panel’s actual pipe size and the support material. A clip designed for a wooden post should not be assumed suitable for a metal post without the correct hardware or installation method.

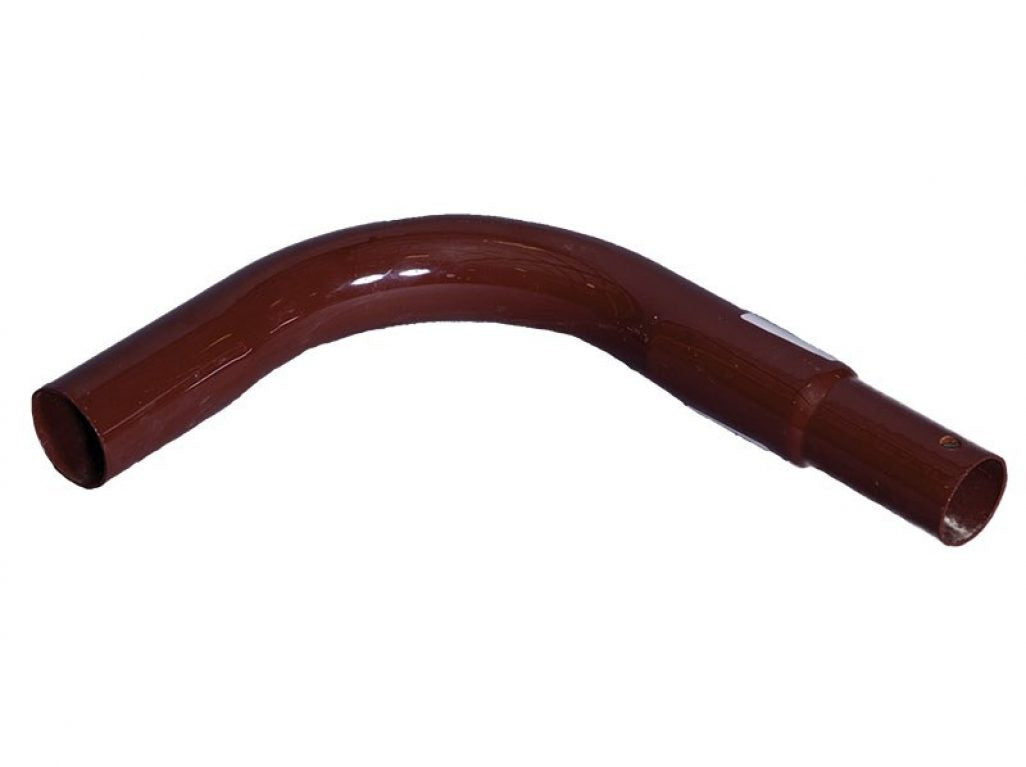

Where a run turns, compatible 45-degree or 90-degree corner components can maintain the rail appearance without trying to bend a standard panel on site. Select fittings with the correct diameter and rail arrangement. End components are also available in swaged and non-swaged styles; the right choice depends on how the final section meets a gate, corner, post, or terminal point.

Plan the complete connection package before ordering. A shipment of straight fence panels alone may not include all the clips, posts, elbows, fasteners, and finishing pieces needed for installation. Confirm each item in the individual product description and quote, including the appropriate finish and whether any parts must be ordered separately.

Use Gates and Corners to Support Safer Livestock Movement

A fence layout does more than divide property. It also determines how cattle move between pastures, pens, lanes, and loading areas. Well-placed gates can reduce difficult turns, crowding, and unnecessary handling. Consider the travel path of livestock and the turning room needed for tractors, trucks, trailers, and feed equipment.

Gate width, hinge position, and swing direction matter. A gate that cannot open fully can create a bottleneck or trap an animal against the fence. Protect gate and corner posts against movement, and inspect the adjoining rails for protruding connections or sharp edges. A continuous fence should integrate with the rest of the facility rather than interrupt safe movement.

For high-pressure working facilities, do not assume a pasture fence configuration is automatically adequate. Panel height, rail spacing, load resistance, posts, anchoring, and gate hardware should all be evaluated for the use intended.

Why Steel Continuous Fencing Can Be a Practical Investment

Many owners choose steel continuous fence panels for a consistent appearance, repeatable section sizes, and the ability to build coordinated runs around a property. Welded steel rails and a factory-applied finish can provide a durable barrier when the system is installed and maintained properly. Compatible elbows and end pieces can help the overall fence look intentional rather than assembled from unrelated parts.

Actual lifetime cost depends on more than the purchase price of each panel. Include posts, concrete or other foundations where needed, mounting hardware, freight, unloading, installation labor, repairs, and long-term maintenance. The lowest-cost panel is not necessarily the least expensive completed fence, and a higher-priced configuration is only worthwhile when its features match the job.

Steel and powder coating are not maintenance-free. Surface damage, standing moisture, salt exposure, impacts, and loose hardware can shorten service life. Compare the complete installed system with other fencing methods under the conditions where it will actually be used rather than relying on broad claims about longevity or security.

Installation and Routine Maintenance

Before installation, lay out and inspect the delivered panels. Verify the rail count, tubing diameter, finish, connector orientation, and accessory quantities. Check for shipping damage, and use handling equipment and safe lifting methods appropriate for long steel sections. Protect people and livestock from panels that are not yet secured.

Set and brace the support posts according to the approved layout. Align panels, connect compatible swaged ends, secure the required attachments, and check the fence line as the work proceeds. Verify clearances at gates and corners before fastening the final pieces. Follow the manufacturer’s installation guidance rather than assuming a panel is safe to use merely because the rails are joined.

After installation, periodically inspect the posts, clips, connections, finish, and rails. Pay particular attention after severe weather, equipment contact, or heavy animal pressure. Correct loose fasteners and damaged surfaces promptly. Remove hazardous projections, address any section that has shifted out of alignment, and review whether vegetation, erosion, or changes in ground level are creating new openings beneath the fence.

Freight Delivery and Ordering Considerations

Long steel fence panels are bulky freight items. Delivery costs and unloading arrangements can be a meaningful part of the project budget, particularly for 20-foot sections or small orders shipped a long distance. Confirm whether your property has suitable access for the delivery vehicle and whether a forklift or other equipment will be needed to unload the order safely.

When requesting a quote from Barn World, provide the selected 10-foot or 20-foot panel configuration, approximate number of each size, rail count, tubing diameter, finish, corner requirements, and destination ZIP code. Include any gates, special end pieces, or mounting components required by the layout. A simple sketch with dimensions and notes about post type or existing structures can make it easier to identify missing parts before the order ships.

Frequently Asked Questions About Continuous Fencing

What is the advantage of continuous fence panels over individual pipe rails?

Compatible panels join together to create the appearance of connected horizontal rails. This can make long runs easier to plan and provide a consistent appearance, while still requiring secure support posts, attachments, and proper installation.

Are 10-foot and 20-foot panels interchangeable in the same fence line?

They may be used together when their specific tubing diameter, rail count, rail height, connections, and other dimensions are compatible. Do not assume every 10-foot configuration matches every 20-foot configuration; verify the exact options before ordering.

What is a swaged end on a continuous fence panel?

A swaged end is a reduced-diameter rail end intended to fit into the open end of a compatible adjacent rail. This creates the connected appearance associated with continuous fencing. The joint does not replace the supporting post or required attachment hardware.

How many posts are needed for continuous fence panels?

The correct number depends on the selected panels, the manufacturer's installation requirements, the soil, changes in grade, corners, gates, and livestock pressure. Panel length by itself is not a reliable post-spacing specification. Design the supports for the full fence rather than using a universal interval.

Can continuous fence panels be installed on wood or metal posts?

Installations may use different supporting post materials, but the mounts and fastening method must be compatible with the actual post and panel. Check whether the clips supplied or selected are meant for wood, steel, or another application before construction.

Which rail count is best for cattle?

There is no universal answer. Consider cattle size, whether calves are present, the level of animal pressure, panel height, rail openings, and the rest of the fence structure. A heavy-use working area may require a different engineered arrangement from an ordinary pasture boundary.

Do I need special parts for corners and ends?

Usually, a complete layout needs appropriate corner, termination, and mounting components in addition to straight panels. The exact parts depend on the selected tubing and rail configuration, direction changes, gates, and posts. Verify the complete material list before ordering.

How do I estimate the delivered cost of a continuous fence?

Measure the fence line and list the desired panel configurations, then account for gates, corners, ends, support posts, hardware, labor, and freight. Give Barn World the panel quantities and delivery ZIP code for a more useful shipping estimate. Long panels can involve special handling or unloading requirements.
