Browse Products

12 products

Showing 1 - 12 of 12 products

Showing 1 - 12 of 12 products
View
Calving Pen
Calving Pen
Sale price$5,699.00

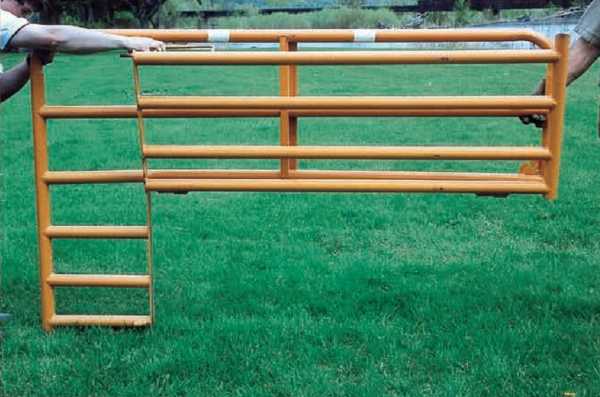

Standard Panel for Sioux Calving Pen

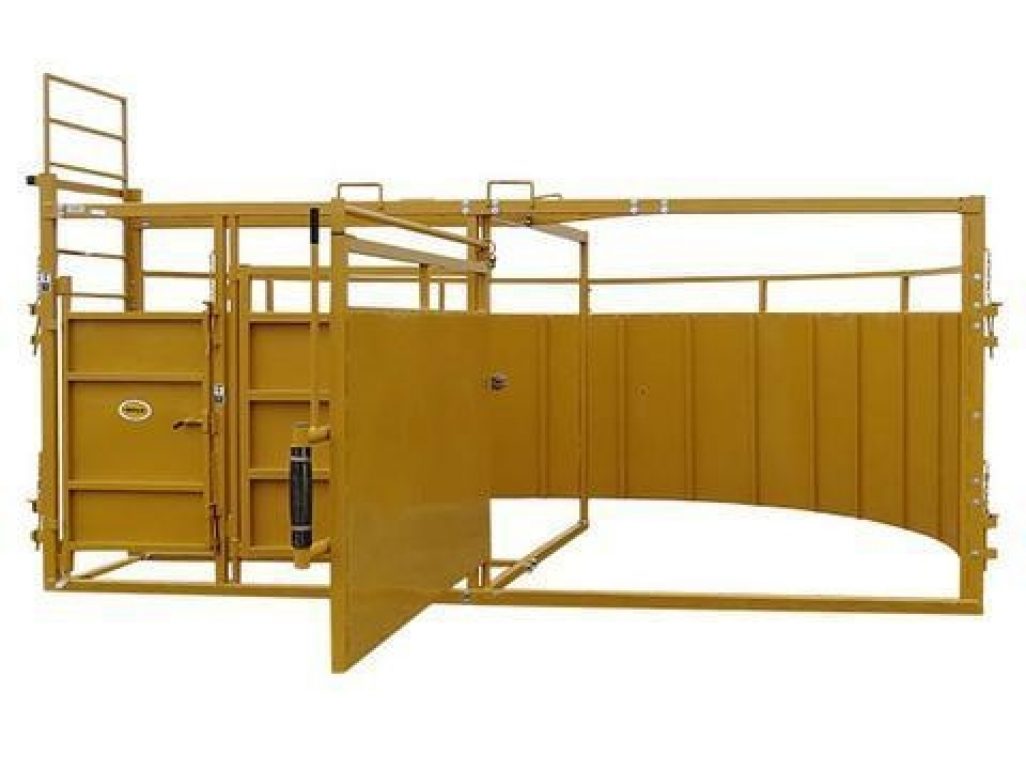

Cattle Alley and Crowding TubAlley -16' with 8' Crowding Tub
Cattle Alley and Crowding Tub
No Longer Available
Connector ClipConnector Clip
Connector Clip
Sale price$29.00
Livestock Crowding Tub
Livestock Crowding Tub
Sale price$7,999.99
Choose options

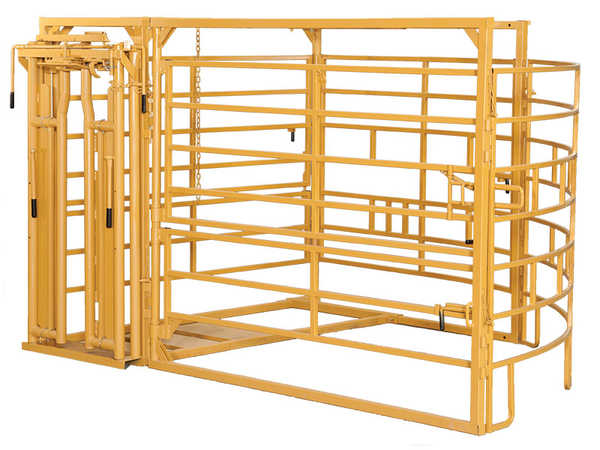

Maternity Pen
Maternity Pen - Unavailable
No Longer Available

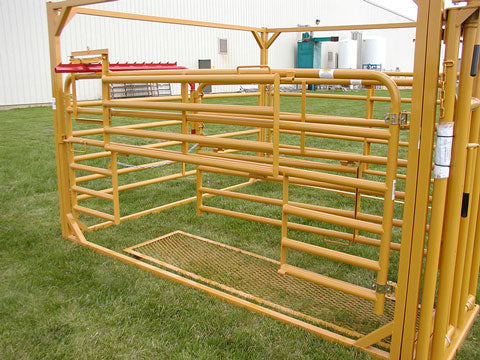

Nursing Panel Assembly for Sioux Calving Pen
Sioux Steel Head Gate Panel Assembly

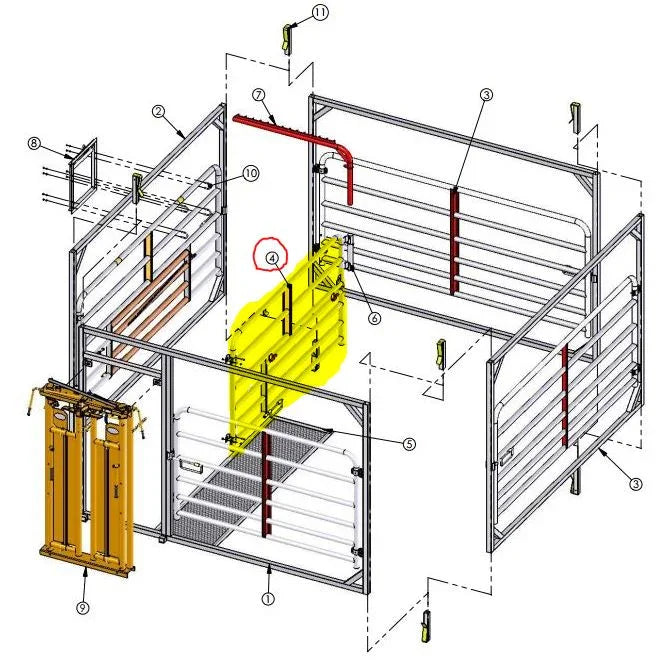

Squeeze Gate for Sioux Calving Pen

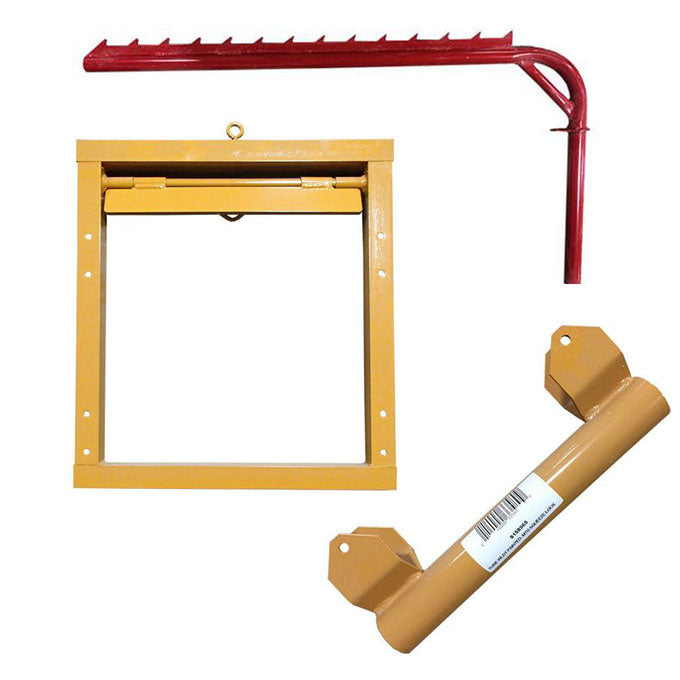

Squeeze Gate Latch Package for Sioux Steel Calving Pen

Recently viewed

Calving pens and cattle crowding tubs are both important livestock working equipment, but they do very different jobs. A calving pen provides a designated space for monitoring a cow and calf and, when appropriate, restraining the cow for qualified care. A crowding tub guides a manageable group of cattle from a holding pen into a working alley. Buying the right product starts with identifying which of those jobs your operation needs to accomplish.

Barn World carries Powder River and Sioux Steel calving pens, a Sioux Steel crowding tub, and compatible Sioux Steel nursing panels, gates, latch packages and connectors. This collection also contains older cattle-handling packages and a maternity pen marked discontinued. Review the current equipment and included components carefully; an individual gate or bracket is not the same as a complete calving-care system.

For additional cattle chutes, headgates, alleys and working components, visit our Livestock Working Equipment category. The buying guidance below explains the available styles, installation considerations and information needed for a freight quote.

Calving Pen Versus Cattle Crowding Tub: Know the Difference

In a calving area, the priority is a calm and accessible place where the cow can be observed and cared for. A calving pen may have gates that swing away, a suitable headgate, a nursing panel or a controlled squeeze mechanism. These features can improve access for trained operators and veterinarians, but they do not eliminate the need for animal observation, sound handling practices and prompt veterinary assistance when necessary.

A cattle crowding tub belongs at a different stage of the working facility. It collects a small group coming from a holding pen and directs the group toward a single-file alley. Its walls, gates, catwalk and adjustable outlet help control the direction of movement. A crowding tub is not a maternity stall, a birthing enclosure or a substitute for the restraint provided by a calving pen.

Some operations need both systems, but in different areas. A dedicated calving pen may be placed where pregnant cows can be monitored and managed without unnecessary disturbance. A tub and alley may be part of the main cattle-working area for vaccination, weighing or routine herd processing. Plan the flow between those areas so that cattle and people do not cross unsafely.

Compare Available Calving Pens, Crowding Tubs and Components

The following overview reflects product descriptions currently associated with this collection. Details such as included headgates, finished dimensions and delivery weights must be confirmed for the exact model and configuration.

Equipment Listed features Important purchasing detail
Powder River Calving / Health Pen Self-catching headgate, split swing-away squeeze panels and operator access gate Confirm the exact footprint, shipped weight and included configuration before ordering
Sioux Steel Calving Pen Care Center 10 × 10 ft holding configuration; auto headgate, nursing panel, squeeze gate and anchor mat Complete system versus compatible replacement or add-on parts
Sioux Steel Crowding Tub 8-ft tub, approximately 16-ft overall length, full catwalk and adjustable alley outlet Select left- or right-hand cattle flow and check adjoining alley compatibility
Calving pen component listings Nursing panel, standard panel, headgate mounting panel, squeeze gate, latches and connector clips Individual parts are not complete pens; verify model and included hardware

Product photographs may show additional gates, fittings, panels or an assembled system for illustration. Compare the supplier's current bill of materials to the exact order. In particular, a headgate mounting panel does not include a headgate merely because a headgate is pictured installed on it.

Powder River Calving / Health Pen

The Powder River calving and health pen is intended for controlled cow-calf handling. Its product listing describes heavy-gauge steel tubing, a self-catching headgate with emergency release features, split squeeze panels that can swing away, a latched access gate, and a front operator opening. These features may help qualified personnel position the cow and gain access while reducing the need to move her through several separate pieces of equipment.

Before purchasing, confirm the exact model and equipment included. The current Barn World product description contains inconsistent footprint and weight specifications in different sections. For that reason, this category guide does not quote a definitive assembled size or shipping weight for the Powder River unit. The manufacturer or Barn World should confirm those details before a facility is measured, a pad is built or freight is scheduled.

Assess the space needed for gates to swing fully and for caretakers or veterinary personnel to move around the cow safely. A gate that swings 180 degrees requires clearance, and the entry route should not force a pregnant animal through a tight turn or unstable footing. The installed equipment should allow the cow and calf to be monitored without repeated disturbance.

Sioux Steel Calving Pen Care Center

Sioux Steel's Calving Pen Care Center is a complete modular working pen. The current Barn World listing describes a 10-by-10-foot holding arrangement when the squeeze gate is moved aside, a self-catching auto headgate, a nursing panel, a seven-foot squeeze gate with latch components, and a reinforced steel anchor mat. The complete system is listed at approximately 1,094 pounds, with an overall height of 83 inches.

The product's included-component list identifies two standard 10-foot panels, a 10-foot nursing panel, a headgate panel, the auto headgate, the squeeze gate, the anchor mat, latch components and eight connector clips. This complete configuration is different from the separate parts shown elsewhere in the collection. Check the exact current package before ordering; components may change between model revisions.

One useful feature is access from multiple sides. Swing-away panels and a lifting nursing section can provide an approach for animal observation and appropriate nursing assistance while the cow is correctly positioned. The squeeze gate has a ratchet-style control that should be used carefully and released in accordance with the manufacturer's instructions.

The anchor mat is intended to help stabilize the assembly by connecting to the frame where the animal stands. It is not a substitute for assessing the site, assembling the clips properly or checking that the entire pen remains stable during use. The system is heavy enough that safe unloading and assembly deserve planning before delivery.

Choosing a Cattle Crowding Tub for a Working Facility

The Sioux Steel crowding tub in this collection is a separate cattle-handling system component. Its current listing describes an eight-foot model, approximately sixteen feet overall, with enclosed ribbed walls, four doors, a full catwalk, and an outlet adjustable from about 19 to 28 inches. It connects a larger holding area to a compatible alley so the herd can move toward a squeeze chute or sorting location.

Left- and right-hand configurations allow the tub to be oriented for the direction of cattle movement and the adjoining pens. The preferred configuration depends on where cattle enter, how the alley runs, which side handlers work from, and where animals are released. Do not choose a tub based on its nominal diameter alone.

The current product is designed with bolt-together sections and removable outside walkways that aid transport or relocation. Check the finished dimensions and whether the catwalk can be removed before planning a delivery route. A gate that works well in a drawing may be difficult to use if the installed tub blocks access to other pens or equipment.

University extension cattle-handling guidance recommends using manageable groups, limiting excessive crowding, and avoiding pushing animals into a blocked alley. A crowding tub should support controlled movement, not be used to force more animals into the next passage than it can safely hold. Adjustable Cattle Alleys are available in a separate Barn World collection for compatible working layouts.

Calving Pen Features That Matter Most

The best pen depends on the cow's size, the work being performed, and how the farm monitors cattle before and after calving. Look at the gate system, safe opening and release, rear and side access, usable space, and the ability to separate the cow and calf when it is necessary and appropriate. An enclosure should offer an operator a practical route to inspect the animal without entering a dangerous kick zone.

A self-catching headgate may help hold the head of a correctly positioned animal, while a manual headgate may provide different control choices. Neither replaces the need for trained operation, nor does a headgate alone provide the full-body restraint of a squeeze system. An emergency release should be accessible and understood before the pen is used.

Nursing panels or flip-up access sections can make it easier for the calf to reach the cow or for qualified personnel to provide care. The exact opening size and latch design are model-specific. Do not assume that every product named “calving pen” includes a nursing panel, squeeze latch, or steel anchor mat.

A multi-use calving/health pen may also support routine examinations or necessary livestock management when the manufacturer permits the application. Keep the intended use and the animal's stage of pregnancy in mind. Handling decisions and obstetrical interventions should be directed by an experienced livestock professional or veterinarian, not based only on the hardware's appearance.

Complete Systems Versus Individual Calving Pen Parts

This collection includes stand-alone component listings because producers sometimes need to replace a worn gate or expand an existing compatible system. A separately offered nursing panel assembly, for example, is not a complete calving pen. The headgate mounting panel is also different from the headgate that fits within it.

The Sioux Steel connector clips join compatible framework components. The nursing panel has a lift-up section with locking hardware. The squeeze gate and its latch package provide controlled positioning when installed as specified. Each part serves a different function and may require other components to complete the working pen.

Before ordering a part, identify the manufacturer, model, approximate age, and existing hardware. Compare the manufacturer's diagrams and part numbers where available. A similar-looking gate or latch from another pen may have different mounting locations and should not be treated as interchangeable without confirmation.

Some accessory products are available separately while others may be supplied only with a compatible main item. Confirm individual-sale eligibility rather than assuming that every part pictured with a complete pen is included in a single accessory's price.

Site Layout, Working Space and Animal Access

A calving pen should be located where cattle can be monitored without unnecessary traffic and where feeding, water and bedding can be managed. Choose a stable, well-drained area with enough room to open every gate, safely move between the front and rear of the pen, and provide access for veterinary personnel or equipment if necessary.

Plan the surrounding fences and gates before placing a heavy pen. A 10-by-10-foot holding configuration does not mean that the equipment requires only 100 square feet of overall site area. Swinging gates, headgate access, removal of contaminated bedding, access lanes, and unloading space may all require more room.

Where the facility will house animals for extended periods rather than only short handling sessions, species- and operation-specific welfare and space requirements must also be considered. A restraint pen is not automatically a complete maternity housing system, nor is every compact handling pen appropriate for prolonged occupancy.

For cattle flow around a larger working operation, plan the connection among holding pens, the crowding tub, alley and squeeze chute. Leave room for animals to move forward without turning sharply against a solid barrier. Observe traffic patterns and correct unsafe bottlenecks rather than simply applying more pressure from behind.

Safer Calving and Cow-Calf Handling

Pregnant cows and new mothers can respond unpredictably to confinement, people, and activity around their calves. Reduce unnecessary noise and repeated handling. Position gates and operators so that sudden forward, backward or sideways movement does not trap a person against the steel framework.

Before introducing an animal, make sure all latches, pins, panels, restraint mechanisms and emergency-release controls operate correctly. Check the floor for mud, ice and other slipping hazards. If a gate or restraint cannot be moved freely, inspect and repair it before working cattle.

Use restraint only for a suitable purpose, with the correct equipment and experienced personnel. Avoid excessively tightening squeeze mechanisms or leaving an animal in a stressful position longer than necessary. Watch for breathing problems, loss of footing, entrapment, or other signs of distress and follow approved release procedures.

A veterinarian should be involved when calving complications or abnormal labor require professional diagnosis or assistance. No calving pen can guarantee an uncomplicated birth, prevent every injury, or replace prompt veterinary care.

Ventilation, Bedding, Drainage and Cleaning

Keeping a calving area clean and reasonably dry helps support animal health and safe movement. Wet bedding, accumulated manure and persistent mud can increase contamination and create slippery footing for cows, calves and handlers. Design the area so bedding can be removed, water can drain away from the pen, and equipment can be washed without trapping dirty runoff.

Ensure ventilation is suitable for the building or shelter around the pen. An indoor maternity area needs adequate fresh air without creating uncomfortable direct drafts on newborn calves. Choose bedding appropriate to the season and management plan, and follow veterinary or extension guidance for sanitation and animal health.

Steel equipment must be inspected as well as cleaned. Remove debris from hinges and latches, check for loose connector clips or damaged welds, and follow the maker's instructions for service and lubrication. Clean equipment appropriately between uses, especially if animals from different groups or farms share the pen.

Assembly, Maintenance and Component Compatibility

Before assembly, lay out the parts according to the manufacturer's instructions. Verify that the headgate, panels, nursing gate, squeeze gate, anchor mat, latches and connector clips match the packing list. A missing clip or incorrect latch can compromise the operation of a heavy steel gate.

Check that the chosen pad or ground surface is level enough for the pen to operate as intended. Follow the maker's anchoring and positioning directions rather than improvising an attachment to an unsuitable fence. After the first animal has used the system, inspect joints and restraints again for looseness or damage.

Periodically test emergency releases, gate swings and any ratchet or locking mechanism with the pen empty. Replace worn hardware with compatible approved parts. Reassess the arrangement after moving the equipment, modifying nearby gates, or changing the size and type of cattle handled.

Freight Delivery and Buying Considerations

Complete calving pens and crowding tubs are substantial freight items. The Sioux Steel Care Center is listed at approximately 1,094 pounds, and the crowding tub has a large assembled footprint even though its sections can be transported separately. The Powder River calving-pen listing currently contains inconsistent weight and footprint specifications; confirm the exact model before arranging delivery and unloading.

Evaluate the total installed cost, not just the price of the equipment. A headgate, nursing panel, latch kit or connector clip may be a separate line item. The job may also require a prepared floor, connecting gates, appropriate alley equipment, unloading machinery, assembly time and safe access for daily care.

For a delivered quote from Barn World, provide the complete calving pen or tub model, any required accessory parts, the quantity, delivery ZIP code, available forklift or tractor, and restrictions on truck access. For a crowding tub, also specify left- or right-hand orientation and the equipment it must connect to.

If replacing one component in an existing pen, send the model, part number or clear photographs so compatibility can be checked. Do not order a discontinued historical package expecting every component to remain available as a new complete system.

Frequently Asked Questions About Calving Pens and Cattle Tubs

What is the difference between a calving pen and a cattle crowding tub?

A calving pen provides a designated area for cow-calf care and may include suitable restraint and nursing access. A crowding tub guides groups of cattle into a working alley and is not designed as a calving stall.

What complete calving pens does Barn World offer?

The current collection includes Powder River and Sioux Steel calving-pen products. Their headgates, gates, included hardware and dimensions differ, so compare the exact models before ordering.

Does the Sioux Steel Calving Pen Care Center include a headgate?

Its current complete-system listing includes an auto headgate, along with panels, nursing access, a squeeze gate, a steel anchor mat, latch components and connector clips. Separate component listings do not necessarily include those parts.

How large is the Sioux Steel Calving Pen?

The Care Center listing describes a 10-by-10-foot holding arrangement when the squeeze gate is moved away, with approximately 83 inches of overall height. Allow additional working space for gates and operator access.

What is the size and weight of the Powder River Calving Pen?

The current Barn World product description has conflicting size and weight figures in different sections. Confirm the exact current model's footprint and shipped weight before preparing a site or booking freight delivery.

Is the eight-foot Sioux Steel crowding tub a maternity pen?

No. The eight-foot crowding tub is a working-facility component with enclosed walls, gates, a catwalk and an adjustable outlet for directing cattle into an alley.

Can I buy a replacement nursing panel or squeeze gate?

Compatible Sioux Steel panel, gate and latch components have separate listings. Check model compatibility, included hardware and whether the exact part is offered individually before ordering.

Are older complete cattle-handling packages still available?

Several historic package listings in the collection are marked discontinued. Review current complete pens, the active crowding tub and compatible components rather than assuming old package combinations are still supplied.

Can calving pens be used for routine cattle treatment?

Some calving or health pen models are intended for additional livestock care, but suitability depends on the animal, procedure, operator training and manufacturer's stated purpose. A veterinarian should direct medical interventions.

What details are needed for a calving pen freight quote?

Provide the exact model, quantity, preferred components, destination ZIP code, unloading equipment and delivery restrictions. For the crowding tub, include its intended orientation and the adjoining alley configuration.

See the Livestock Working Equipment Demonstration

This existing Barn World video offers a general look at livestock working equipment and how compatible components may be used in a handling facility. Always confirm the exact configuration and current availability shown on an individual product page.
