Description
Grain bins require a collar on the bottom of the taper hopper section to add attachments for grain distribution from the bottom of the bin. This one-piece collar has three different top angles for a smooth transition to the cone walls. It is for 16" diameter openings, weighs approximately 7 pounds, and is designed to fit straight boots and 30-degree poly boots.
Specifications
- 6' diameter bins - 60-degree angle - 24 holes (approx. 2 ¼ inches apart)
- 7' diameter bins - 67-degree angle - 24 holes (approx. 2 ¼ inches apart)
- 9' diameter bins - 60-degree angle - 18 holes (approx. 3 inches apart)
Approximate Specifications
| Hole Distances | ||||
| Diameter | Top Angle | # Holes | Apart | Approximate |
| 6 | 60 degree | 24 | 2.162" | just over 2-1/8" |
| 7 | 67 degree | 24 | 2.162" | just over 2-1/8" |
| 9 | 60 degree | 18 | 2.883" | just over 2-7/8" |
Grain Bin Hopper Collar Picture
Grain Bin Collar Overview
The one-piece grain bin collar is an essential accessory for anyone using feed bins. This sturdy collar is designed to seamlessly transition from the tapered walls of your feed bin, providing a robust and reliable connection point for additional accessories. One of its standout features is the ability to hang a poly boot, which is crucial for efficiently unloading grain from the bin.
The one-piece design ensures maximum durability and stability, preventing leaks and maintaining the integrity of your feed bin. Installation is straightforward, and the collar fits snugly, creating a tight seal that prevents any loss of feed. This collar is not just a connector; it's a vital component that enhances the overall functionality of your feed bin system.
In addition to supporting poly boots, this versatile collar allows for the attachment of various other bin accessories. Whether you need to connect augers, unloaders, or other equipment, this collar serves as a reliable anchor point, making your grain handling operations smoother and more efficient.
Overall, this one-piece grain bin collar is a must-have for anyone looking to improve the efficiency and reliability of their grain storage and unloading setup. Its robust construction, ease of installation, and compatibility with a range of accessories make it a valuable addition to any agricultural operation.
The collar goes inside the bin wall sheets and is 4-9/16" tall overall.

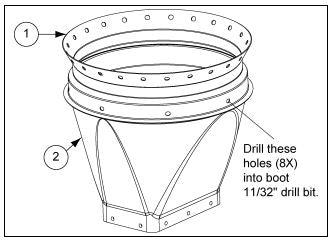

Picture of Hopper Collar attached to Bulk Bin

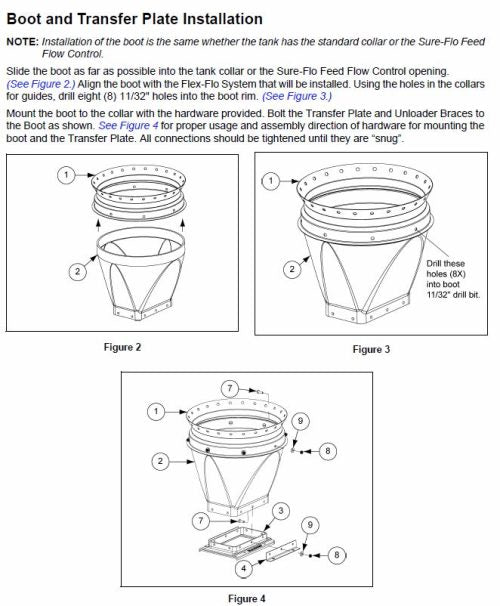

Once the bottom collar is attached to the bin as shown, slide valves and unloaders may be hung and used to dispense your grain or other materials.
One-piece Grain Bin Collar
