Grain Bin Straight Boot Description
This boot has the same dimensions as the 30-degree poly boot but is cut straight on the bottom. It is designed to fit the grain bin slide valve and is available as a 30-degree boot as well.
Grain Bin Boot Specifications:
- The outside diameter top end is 17 1/8", inside is 16 3/8"- see pictures below
- The outside diameter of the lower end is approximately 6 1/2" x 10 3/4" and the inside is 6" x 10"
- The length from top to bottom is 13 3/4"
- Attaches to the slide valve to control feed flow
Your feed system relies on the proper functioning of essential components such as bin boots, anchor bearings, and driver assemblies. This feed bin boot is a straight drop configuration that ensures a continuous and reliable flow of feed. This variety allows you to maintain confidence in the proper functioning of your feed delivery system.
The boot provides a transition from the round bottom of the bin to the rectangular entrance to the slide valve. The slide valve can then control the release of grain from the feed tank. It hangs from the collar and is also available in a 30-degree cut.

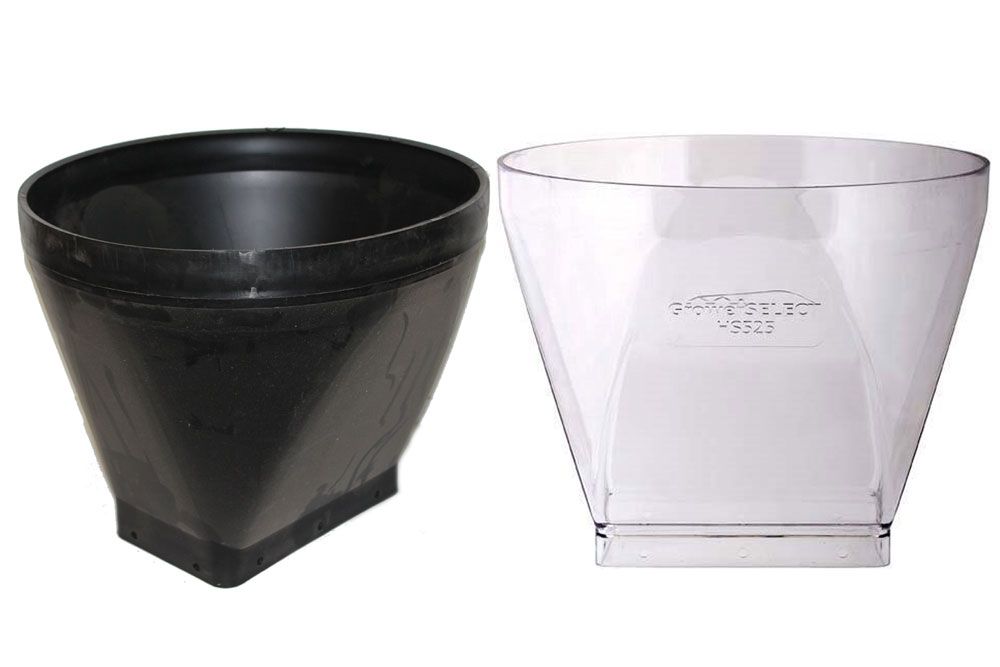

Poly Straight Boot
It offers a cost-effective solution to replace OEM equipment with high-quality components that are compatible with all common feed system sizes. This ensures affordability without compromising on performance, providing a seamless fit into your existing system. The high-quality design offers years of reliable operation and creates a sturdy foundation for your feed delivery operations.
The feed bin boots shown here fit a 16" opening and provide a straight angle for tandem bin installations and a shallow pitch entry into the barn, offering versatility and adaptability to different operational setups.
It’s also available at a 30-degree angle, or 45 degrees when coupled with the boot wedge.
Boot Top Dimensions

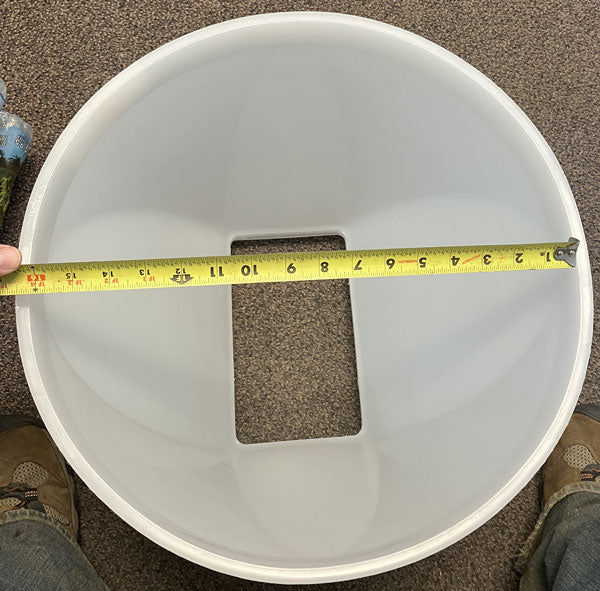

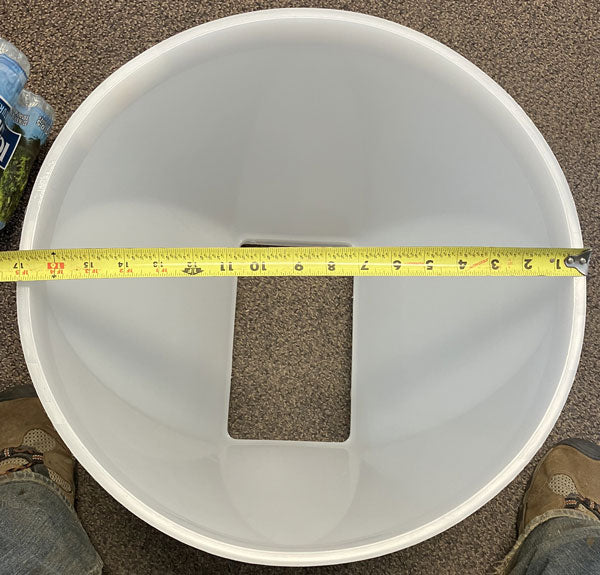

Below are pictures of both the interior and exterior measurements for the top of the poly boot. This is the area that attaches to the bottom of the hopper section of your grain bin.
