Polyethylene Lick Tanks for Liquid Cattle Supplements
These livestock lick tanks use rotating lick wheels to make compatible liquid feed supplements accessible to cattle. Their translucent polyethylene reservoirs let you check liquid levels at a glance, while the tank-and-wheel design supports controlled access to liquid supplements. Unlike traditional dry mineral feeders, lick tanks are intended for appropriate liquid formulations, not mineral blocks or loose dry minerals.
Currently out of stock: Use the capacities and dimensions below to compare configurations. For another option, review the 280-gallon lick tank and confirm its current availability before ordering. See our complete selection of livestock lick tanks.
This product is currently out of stock. The specifications below are retained for reference and future availability; they do not indicate that a size or configuration is currently available to order.
Construction and Feeding Mechanism
- High-impact, UV-stabilized polyethylene tank body.
- Polyethylene lick wheels supported by mounting brackets.
- Filler caps and raised wheel-opening details intended to help manage weather exposure.
- Smooth poly surfaces for cleaning and visual liquid-level checks.
As animals rotate the wheels, liquid is brought from inside the tank to the feeding surface. Inspect the contents, wheel operation, caps, and brackets regularly. Weather-resistant construction does not eliminate contamination, damage, or the need for maintenance.
Capacity and Configuration Reference
| Specifications by Size | ||||
| Gallon Capacity | 16 | 50 | 125 | 285 |
| Outside Dimensions | 16 x 16" | 26 x 37" | 50" Diameter | 68" Diameter |
| Depth of Tank | 16" | 22" | 23" | 24" |
| Feeder Wheels | 1 | 2 | 2 | 2 or 4 |
| Wheel Locations | Center | Side | Side | Side or Center |
| Wheel Diameter | 16" | 22" | 22" | 22" |
The reference chart lists model-specific capacities, dimensions, wheel counts, and wheel locations. Confirm the exact configuration and included components when this product becomes available again. Do not assume that options shown for one size apply to another.
Liquid Lick Tanks vs. Dry Mineral Feeders
Choose a lick tank when your nutrition program calls for a compatible liquid supplement that animals access by turning a wheel. Dry mineral feeders serve loose mineral mixes or blocks and are not interchangeable with liquid delivery systems. Match the feeder to the supplement form, animal access needs and the supplier’s instructions for intake monitoring.
When comparing lick tank sizes, consider herd size, the number and placement of wheels, refill frequency, and access for cleaning. The size chart above explains the different tank capacities and wheel arrangements; verify current product availability before purchasing.
Supplement Selection and Intake
Use a supplement labeled for the intended livestock and compatible with the feeder. Follow the supplement supplier's feeding and intake-monitoring directions. Consult your livestock nutrition adviser when choosing a supplement or changing a feeding program.
The feeder provides access to liquid supplement; it does not guarantee a specific intake, prevent deficiencies, eliminate waste, or ensure improvements in health, weight gain, or reproduction.
Cleaning and Replacement Wheels
Keep caps and covers fitted correctly and follow the manufacturer’s cleaning and handling instructions. Check for leaks, contamination, wheel wear, and loose or damaged brackets. Do not leave the feeder unattended for extended periods without checking its condition and contents.
Match replacement wheels to the tank model, wheel diameter, brackets, and mounting position. The replacement lick wheels for white tanks have their own compatibility requirements; confirm fit before ordering.
Filler Cap Details
Replacement Lick Wheel

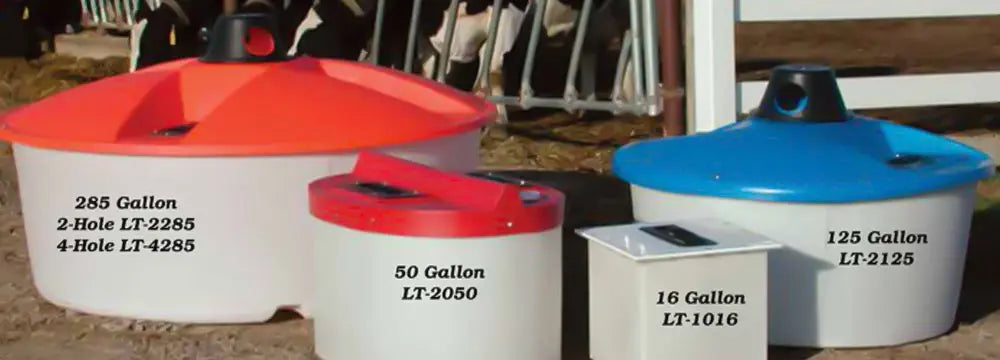

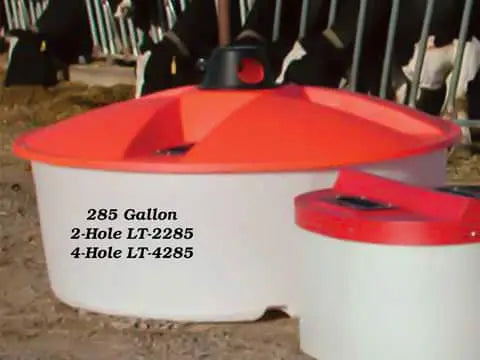

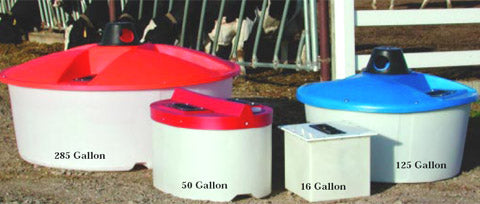

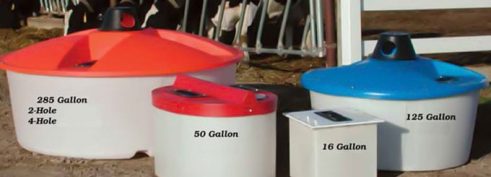

Lick Tank Sizes and Field Examples
Freight and Availability
These feeders ship by pallet freight. Individual feeder shipments can be expensive, and shipping multiple units together may reduce the per-feeder freight cost. Confirm current availability before arranging an order.
For an alternative, review the 280-gallon lick tank and check that product's current availability and specifications. Contact Barn World with the model, quantity, delivery ZIP code, and unloading requirements for a freight quote.
