Compare energy-free livestock waterers and hog watering equipment

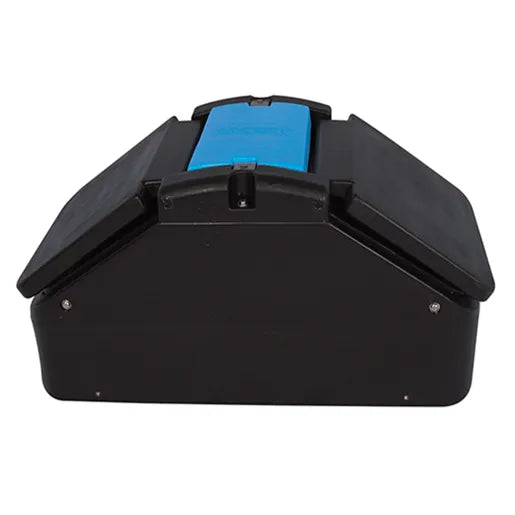

6-Gallon Energy-Free Hog Waterer with 2 Lift-Up Lids
This insulated 6-gallon hog waterer has 2 individual lift-up drinking lids with 10-inch openings, giving pigs and sows covered access to fresh water. The Miraco MiraFount 3410 is designed for automatic water replenishment from a correctly installed supply line. Its low drinking height and tough polyethylene construction make it a practical option for swine operations evaluating non-electric watering equipment.
Winter performance depends on installation and use. This is the energy-free model, with no built-in electric tank heater. Insulation, ground-temperature incoming water, a frost-protected supply line and adequate water turnover can help resist freezing, but this equipment is not guaranteed to remain ice-free in every temperature or herd situation.
Hog Waterer Specifications
| Specification | Manufacturer details |
|---|---|
| Manufacturer / model | Miraco MiraFount 3410; Barn World SKU A3410 |
| Water capacity | 6 gallons |
| Drinking access | 2 lift-up lids with 10-inch drinking openings |
| Dimensions | 34 in. long × 19 in. wide × 16 in. high |
| Empty weight | 52 lb |
| Manufacturer-rated livestock capacity | Up to 100 market hogs or 50 sows, subject to water supply and operating conditions |
| Construction | High-impact polyethylene with urethane insulation |
| Cleaning | Sloped basin and drain holes with removable rubber plugs |
| Mounting | Stainless steel anchor hardware listed by manufacturer |
| Built-in heater | None; separate heated models are available from Miraco |
| Warranty | Manufacturer's listed five-year warranty, subject to current terms |
Why Use a Covered Automatic Hog Waterer?
- Separate drinking openings: 2 lift-up lids allow more than one pig to drink at the same time, while keeping unused openings covered.
- Insulated water reservoir: Polyethylene construction with urethane insulation reduces temperature changes compared with an uninsulated open container.
- Automatic refill: Water enters through the internal valve as hogs drink; the lift-up lids themselves do not regulate water level.
- Cleaning access: A sloped interior and drain plugs help remove water and sediment during routine maintenance.
- Low drinking profile: The covered openings are designed for market hogs and sows; confirm accessibility for the size and age of your pigs.
Choosing Between Two-Lid and Four-Lid Hog Waterers
This 6-gallon model has 2 drinking positions. Compare it with the 15-gallon, four-lid hog waterer. The correct choice depends on herd size, how many animals drink at once, available space, water pressure, recovery flow and whether the waterer receives enough daily use in freezing conditions. Manufacturer head-count ratings are guidelines, not guarantees of adequate water for every group.
Installation and Cold-Weather Management
The MiraFount system relies on incoming ground-temperature water and insulated construction rather than electric heat. Install the plumbing and recommended insulated heat tube below the local frost line, prepare a suitable concrete pad, anchor the unit securely and follow the Miraco installation guide for model 3410. The manufacturer's installation materials identify a compatible #834 insulated heat tube; confirm whether that item is included or must be ordered separately.
Inspect the water level, refill valve, drinking lids and drain plugs frequently. During freezing conditions, check that hogs can lift the lids and that sufficient water is available. If animals visit infrequently or the location is exceptionally cold, consider a correctly specified heated waterer instead.
Frequently Asked Questions
Is this a heated hog waterer?
No. This MiraFount 3410 is an energy-free unit and does not include an electric heater. Miraco sells distinct heated models; verify the model designation before ordering.
How much water does it hold?
Its rated reservoir capacity is 6 gallons, with automatic replenishment through an appropriately connected water line. It is not a manually filled portable bucket.
How many hogs can it serve?
Miraco lists up to 100 market hogs or 50 sows under suitable conditions. Practical suitability depends on daily demand, water supply and simultaneous access.
Will it prevent freezing without electricity?
It is engineered to help resist freezing when properly installed and used regularly, but cannot guarantee ice-free operation in all winter conditions. Follow the manufacturer instructions for frost-line protection and water turnover.
Does the waterer have 2 separate refill valves?
No. The 2 lids cover drinking openings. The internal refill mechanism controls the water level.
Delivered Pricing and Freight Quotes
For equipment and freight assistance, provide the waterer size, model 3410, quantity, ZIP code and any special delivery or unloading requirements. Ask about compatible insulated extension tubing and plumbing accessories before ordering. Contact sales@barnworld.com or compare other hog waterers.
