Miraco MiraFount 3465 — 20-Gallon Two-Hole Cattle Waterer

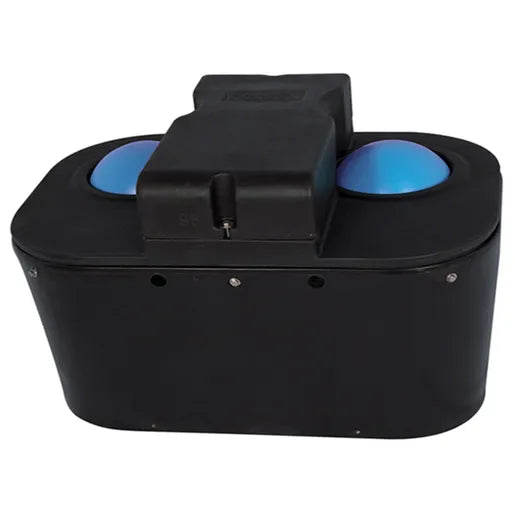

The Miraco MiraFount 3465 is an insulated, automatic two-hole livestock waterer for beef and dairy cattle. Its 20-gallon reservoir and two covered drinking openings give cattle access from either side while patented roll-away ball closures help reduce heat loss and exposure to debris between visits. Durable polyethylene construction and urethane insulation support year-round use when installed and maintained according to Miraco's directions.
Energy-free does not mean freeze-proof: This is the non-electric MiraFount 3465, with no built-in electric heater. Cold-weather performance depends on incoming ground-temperature water, buried water lines, insulation, regular livestock use and weather conditions.
MiraFount 3465 Specifications
| Specification | Manufacturer details |
|---|---|
| Model / SKU | MiraFount 3465 / A3465 |
| Water capacity | 20 gallons |
| Animal capacity | Up to 100 beef cattle or 40 dairy cattle under suitable conditions |
| Drinking openings | Two 9.25-inch drinking openings with 10-inch roll-away ball closures |
| Dimensions | 36 in. long × 24 in. wide × 18 in. drinking height |
| Empty weight | 79 pounds |
| Construction | Insulated polyethylene with urethane foam |
| Electric heater | Not included in this energy-free model |
| Warranty | Manufacturer-listed five-year warranty, subject to its current terms |
The manufacturer's head-count ratings are selection guidelines, not guarantees. Peak drinking demand, water pressure and flow, animal access and climate may reduce the practical number served.
Features and Benefits
- Two covered access points: Livestock push the roll-away balls aside to drink; the closures return over the openings afterward.
- Insulated construction: Urethane foam in the body and extra insulation near the valve area help reduce temperature change.
- Serviceable components: A removable top provides valve access, while a sloped bottom helps with cleaning.
- Outdoor durability: Corrosion-resistant polyethylene avoids rusting steel trough walls.
- Installation hardware: The manufacturer's product information lists stainless-steel anchor bolts.
Installing an Energy-Free Livestock Waterer
To operate without a built-in heater, the MiraFount relies on water supplied from below the local frost line and consistent use by livestock. The manufacturer recommends proper installation with an insulated heat well or tube and suitable supply plumbing. Incorrect depth, insufficient animal traffic or severe cold can still cause the waterer or supply line to freeze.
Before installing, verify the correct installation instructions for model 3465, the local frost depth, water pressure and flow, pad and anchor requirements, compatible heat tube, and the valve connection. During winter, inspect water level, closures and supply lines daily. In low-use locations, consider a properly specified heated livestock waterer.
Choose the Right Size for Your Herd
This 20-gallon, two-opening model is intended for groups that can share two drinking stations and have an adequately sized water supply. Compare it with the 44-gallon MiraFount 3390, or see the larger 70-gallon four-hole MiraFount and 100-gallon six-hole MiraFount. Consider access during peak drinking periods as well as tank capacity.
Frequently Asked Questions
Does the MiraFount 3465 require electricity?
No. This is an insulated energy-free waterer without a built-in electric heater. Proper plumbing and livestock water turnover are still required.
Will this cattle waterer keep water from freezing all winter?
Not under all conditions. Winter performance depends on ground-temperature supply water, installation depth, insulated heat well, animal use and climate. Check the waterer during freezing weather.
Are the roll-away balls water valves?
No. They are drinking-opening closures that help insulate the reservoir. An internal refill valve maintains water level as cattle drink.
Does the waterer include the underground heat tube?
Do not assume the insulated underground heat tube is included. Verify the accessories supplied with the exact model and order compatible installation parts separately when required.
Is a heated version available?
Miraco offers separate heated livestock-waterer models. A heater is not included with this 3465; do not add an aftermarket heater unless the manufacturer expressly approves that configuration.
Freight Quotes and Ordering
For pricing delivered to your location, provide model 3465, quantity, destination ZIP code and any special delivery or unloading needs. Ask about installation accessories, supply-line requirements and compatibility before ordering. Contact sales@barnworld.com or browse other energy-free livestock waterers.
