The Hanging Apron Oiler 60' Long provides a wide, suspended contact area for cattle using two adjacent 30-inch apron oilers. Each unit has a 2.64-gallon reservoir and a hanging canvas applicator that transfers compatible livestock treatment liquid when cattle pass beneath and contact the apron. The combined arrangement provides approximately 60 inches of applicator width for suitable livestock passageways.
This design is intended for cattle operations with an appropriate overhead mounting structure and regular animal traffic. Unlike stationary brush-style oilers, hanging apron oilers use a fabric contact surface that moves as animals pass beneath it. Browse Barn World's cattle oilers and cow brushes to review other applicator styles.
Hanging Apron Oiler Specifications
| Feature | Specification |
|---|---|
| Combined applicator width | 60 inches |
| Configuration | Two adjacent 30-inch apron oilers |
| Reservoir capacity | 2.64 gallons per tank |
| Combined reservoir capacity | 5.28 gallons |
| Listed overall dimensions | 7 × 10 × 60 inches |
| Listed total weight | 55 pounds |
| Canvas dimensions | 24 × 60 inches per apron |
| Application method | Animal-contact, gravity-fed |
| Power required | None |
Configuration note: The original product description identifies two 30-inch oilers mounted side by side. Confirm the current package contents, mounting hardware and installed dimensions before ordering.
How the 60-Inch Hanging Apron Oiler Works
Each 30-inch reservoir supplies treatment liquid to its hanging canvas applicator. Small openings near the upper portion of the tank allow liquid to reach the fabric when movement occurs.
As cattle pass beneath the suspended aprons, contact with their backs causes the assemblies to move. This movement helps distribute liquid from the reservoirs onto the canvas surfaces.
The fabric then transfers compatible treatment liquid to areas of the animals' coats that contact it.
The system operates mechanically, without electricity or a powered pump. It is not a precision dosing system, and the amount of liquid transferred depends on animal contact, the formulation used, canvas condition and installation.
Why Choose the Wider Apron Oiler?
Two Adjacent Applicators
The 60-inch configuration uses two separate 30-inch units. This provides a wider combined contact arrangement than a single apron oiler.
The extra width may be useful where the available passage and mounting structure are appropriate for the larger installation.
It does not guarantee that every animal will contact both aprons or receive identical treatment.
Separate Liquid Reservoirs
Each oiler has its own 2.64-gallon tank, providing a combined nominal capacity of 5.28 gallons.
Because the reservoirs are separate, inspect and refill each one as required. Differences in animal contact may result in different rates of liquid consumption.
Replaceable Canvas Contact Surfaces
The canvas aprons are serviceable components. Repeated animal contact, outdoor exposure and treatment formulations can contribute to wear.
Barn World lists replacement cattle oiler canvas. Confirm the required size and attachment configuration before purchasing.
No Electrical Connection
The gravity-fed arrangement does not require electricity. The installation does, however, require a structurally suitable overhead support and regular inspection.
60-Inch Hanging Apron Oiler Product Photos

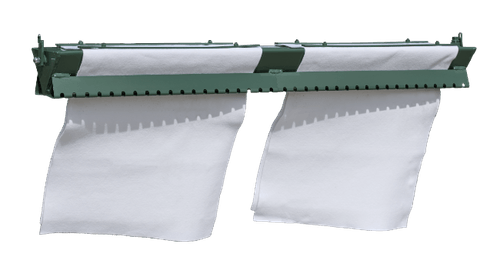

Dual Hanging Apron Configuration
The original photograph shows the two apron oilers positioned next to each other.

Two-Apron Cattle Oiler Arrangement
This additional original photograph illustrates the wider applicator layout.

Choosing a Suitable Cattle Passageway
Hanging apron oilers depend on livestock passing beneath the equipment. Selecting an appropriate location is essential for effective contact and animal safety.
Regular Animal Traffic
Consider a passage that cattle use frequently during normal movement between livestock areas.
The installation should allow animals to approach and leave without unnecessary crowding or interference.
Overhead Clearance
Measure the available overhead span and confirm that the support can accommodate both oilers, their filled reservoirs and movement during use.
Keep the assemblies clear of sharp edges, fencing and other obstructions.
Mounting Height
Set the hanging height according to the manufacturer's instructions and the size of the cattle using the equipment.
The canvas should make appropriate contact without forcing animals into an awkward position or creating an entanglement hazard.
Safe Access for Maintenance
Leave sufficient room for staff to inspect, refill and service both units without entering an unsafe livestock traffic area.
Avoid locations where spills could contaminate feed, drinking water or waterways.
Installing Two 30-Inch Apron Oilers
1. Inspect the Components
Check both reservoirs, canvas aprons, suspension points and supplied hardware before installation.
Confirm that the components match the current manufacturer's assembly instructions.
2. Prepare the Mounting Structure
Use an overhead support capable of carrying the filled units and resisting movement caused by cattle contact.
Do not assume that a lightweight fence rail or unsupported member is adequate.
3. Position the Units Side by Side
Arrange the two 30-inch oilers according to the manufacturer's instructions to provide the intended combined contact width.
Maintain appropriate clearance between moving components and surrounding structures.
4. Set the Hanging Height
Adjust the installation for the intended livestock and verify that animals can pass beneath the aprons safely.
Watch for potential contact with ear tags or other equipment.
5. Inspect Liquid Distribution
Check the reservoirs and distribution openings before adding treatment.
Do not modify the openings or other liquid-delivery components unless directed by the manufacturer.
6. Observe Initial Operation
Monitor cattle during initial use to determine whether the aprons make appropriate contact and whether the installation remains secure.
Inspect for excessive dripping, uneven saturation or unexpected movement.
Using Apron Oilers for External Parasite Management
Hanging cattle oilers can be part of a livestock external parasite management program when used with an approved treatment specifically labeled for the intended animals and application method.
The canvas provides a contact surface through which treatment may reach portions of the animals' coats.
Actual effectiveness depends on the target pest, treatment product, application conditions, animal contact and overall herd management.
Important: The oiler does not guarantee elimination of flies, lice, ticks or other external parasites. It should not be represented as preventing pinkeye or other livestock diseases.
Choosing an Appropriate Treatment
Use only a livestock treatment product whose label permits the intended self-application method and species.
Follow all label requirements for preparation, dilution, protective equipment, application frequency and meat or milk withdrawal restrictions where applicable.
Do not assume that any insecticide concentrate or oil mixture is compatible with this equipment.
Checking Treatment Coverage
Observe how animals contact the aprons and monitor the condition of the canvas surfaces.
Not every animal will make the same contact, and a wider applicator does not necessarily provide complete body coverage.
Evaluate results as part of the broader livestock parasite management program.
Managing Liquid Flow and Dripping

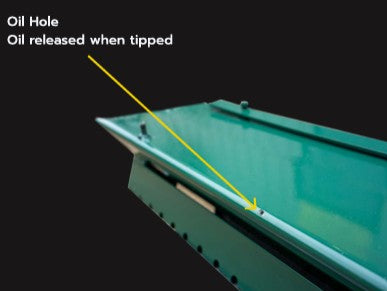

The original description identifies small reservoir openings that release liquid during movement.
Although this arrangement is intended to supply the aprons during animal contact, it should not be described as completely drip-free.
Actual flow depends on the liquid, reservoir level, applicator movement and equipment condition.
Inspect the ground beneath the unit for leakage or excessive dripping. If abnormal flow occurs, follow the manufacturer's troubleshooting instructions before continuing use.
30-Inch vs. 60-Inch Hanging Apron Oilers
Barn World offers the shorter Hanging Apron Oiler 30 inches Long as a separate product.
30-Inch Configuration
The shorter model uses one apron oiler with a single reservoir. It may suit locations where the narrower configuration meets the available mounting space and livestock contact requirements.
60-Inch Configuration
The product on this page combines two 30-inch units to provide a wider contact arrangement with two separate reservoirs.
It requires adequate support and space for both units.
Choose between these configurations based on the actual passage width, mounting requirements, animal size and access for maintenance.
Apron Oiler vs. Hanging Mop Oiler
Apron and mop oilers both rely on animal contact, but their applicator materials and configurations differ.
Canvas Apron Applicator
The apron oiler uses a broad fabric surface supplied by an overhead reservoir. The 60-inch version combines two adjacent applicators.
Rayon Mop Applicator
A hanging mop oiler uses a suspended rayon mop as the liquid-contact surface.
Barn World's Cattle Oiler with 45 inch mop provides an alternative hanging applicator configuration.
Compare the mounting space, reservoir capacity, replacement components and contact surfaces before choosing a design.
Maintenance for the Dual Apron Oiler
Inspect Both Reservoirs
Check for leaks, damage, corrosion where applicable and secure mounting. Monitor liquid levels independently.
Examine the Canvas Aprons
Look for tears, worn areas, loose attachment points and uneven liquid distribution.
Replace damaged material before it creates an unsafe contact surface.
Check Suspension Hardware
Inspect all chains, brackets, fasteners and overhead connections for wear, looseness or damage.
Do not operate equipment with compromised mounting hardware.
Monitor Liquid-Delivery Openings
Check for blockages, excessive flow or leakage. Follow the manufacturer's maintenance instructions.
Clean and Store Properly
Follow both the equipment instructions and treatment label when cleaning the units or disposing of remaining liquid.
Prevent contamination of feed, water and the surrounding environment.
Replacing Worn Cattle Oiler Aprons
The canvas aprons are subject to repeated rubbing and exposure to treatment formulations.
Inspect them regularly and replace them when torn, excessively worn or no longer able to distribute liquid appropriately.
Review Barn World's replacement cattle oiler aprons and confirm the correct size for each 30-inch unit.
Additional Product Photograph
This original product image provides another view of the double-apron configuration.

Frequently Asked Questions
Is this a single 60-inch reservoir?
No. The original product description identifies two adjacent 30-inch apron oilers, each with its own reservoir.
How much liquid does each tank hold?
Each reservoir is listed at 2.64 gallons, for a combined nominal capacity of 5.28 gallons.
What are the overall dimensions?
The original listing specifies 7 × 10 × 60 inches. Confirm the installed dimensions and clearance requirements before ordering.
How much does the unit weigh?
The listed total weight is 55 pounds. Confirm whether this is the shipping or unfilled equipment weight before planning installation.
What size is each canvas apron?
The original listing specifies 24 × 60 inches per canvas.
Does the applicator require electricity?
No. The described system uses gravity and movement during animal contact.
Does the 60-inch width guarantee better pest control?
No. The wider arrangement offers additional contact width, but results depend on the approved treatment, animal contact and other management factors.
Will the applicator eliminate all flies?
No. It can be part of an appropriate external parasite management program but does not guarantee complete pest control.
Can any pesticide be used?
No. Use only a treatment labeled for the intended livestock species and application method.
Can the canvas aprons be replaced?
Yes. Barn World lists replacement cattle oiler canvas. Confirm the required dimensions and compatibility.
Is a single-apron version available?
Yes. The Hanging Apron Oiler 30 inches Long is listed separately.
How often should the reservoirs be refilled?
Refilling frequency depends on animal traffic, liquid distribution and use. Inspect both tanks regularly rather than relying on a fixed schedule.
Can the units be installed in any cattle alley?
No. The passage must provide safe animal clearance and a suitable mounting structure. Follow the manufacturer's installation requirements.
Ordering the Hanging Apron Oiler 60' Long
The Hanging Apron Oiler 60' Long combines two 30-inch hanging cattle oilers into a wider livestock treatment applicator arrangement.
Each unit includes a 2.64-gallon reservoir and a hanging canvas contact surface, providing a combined 60-inch width for appropriately designed cattle passageways.
Before ordering, confirm the available mounting space, current package contents, intended treatment and access for maintenance.
For pricing, availability or a freight quote, contact Barn World with your delivery ZIP code and desired quantity.
