Freight quote required: Contact Barn World with your delivery ZIP code and quantity for a shipping quote before ordering.

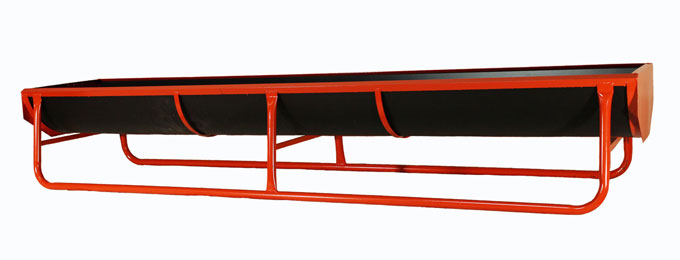

10-Foot Poly-Lined Livestock Feed Trough
This 10-foot economy feed trough provides a generous feeding area for cattle and other livestock, combining a round-tube steel support frame with a replaceable polyethylene liner. The rounded trough is 10 inches deep and 24 inches wide at the top, and the complete feeder weighs approximately 90 pounds. The liner keeps feed separated from the metal support framework and can be replaced when worn.
The feeder arrives fully assembled according to the listed specifications and can accept an optional, compatible hay rack. This trough is for feeding, not for holding water. Compare other poly feed bunks, the smaller 5-foot economy feed bunk, or a matching 10-foot replacement liner.
Feed Trough Specifications
- 10-foot-long economy livestock feeding trough
- 1-1/2-inch round, 16-gauge steel legs and runners
- Rounded polyethylene-lined trough, approximately 10 inches deep and 24 inches wide at the top
- Approximately 20.5 inches tall, with approximately 29 inches between outer leg edges
- Cross-braced legs for added support
- Flat polyethylene liner forms into the supporting frame and can be replaced
- Approximately 90 pounds; listed as fully assembled
- Optional compatible hay rack available separately
- Not designed for water storage
Why Choose a Poly-Lined Feed Bunk?
A feed bunk handles repeated exposure to feed, outdoor conditions and cleaning. The polyethylene liner offers a nonrusting feeding surface supported by the steel framework. Unlike a permanently welded metal trough, a replaceable liner can give owners an alternative to replacing the complete unit when the feeding surface wears out.
Keeping the frame sound is still important. Examine the metal legs, runners and braces for distortion and corrosion during routine maintenance. The liner is designed for feed applications; it is not a watertight liner and should not be used as a livestock water tank.
Choosing Between 5-Foot and 10-Foot Feeding Troughs
The 10-foot length provides more linear access than a five-foot feeder and may help distribute feed to a larger group. It also requires more clear ground space, particularly where animals approach from both sides. The shorter 5-foot economy bunk may be a better fit for smaller pens or additional separate feeding stations.
To determine the number and length of bunks needed, consider animal size, feed type, group behavior and how much simultaneous feeding space the animals require. A single long trough does not automatically prevent crowding. Position feeders to allow safe approach and retreat and monitor access during feeding.
Steel Frame and Replaceable Polyethylene Liner
The frame includes 1-1/2-inch round, 16-gauge legs and runners with cross bracing. Its metal end sections support the flat polyethylene liner, which bends into the rounded trough shape when installed. Avoid modifying the liner or frame without compatible instructions, since holes, sharp edges or an incorrect fit can lead to premature wear.
If your existing feeder frame remains serviceable but its feeding surface is damaged, compare the flat 10-foot replacement feed bunk liner. Check model compatibility and dimensions before ordering; a similar overall length does not ensure an exact fit between different feeder designs.
Optional Hay Rack for the 10-Foot Bunk
An optional hay rack provides a separate space for hay while the trough below can catch some falling material. The rack described for this page is intended for 10-foot bunk feeder model 101010 and bolts to the compatible trough at four mounting points. Verify the selected rack and the purchase options before ordering, since the rack is not necessarily included with the bunk.
Hay rack specifications: approximately 25-1/2 inches wide at the top, 27-1/2 inches deep and 106 pounds. The existing product information describes a one-piece, fully assembled rack with four-bolt attachment. The 106-pound measurement is the rack's listed weight, not a verified hay-holding capacity.
Placement, Cleaning and Seasonal Maintenance
Use relatively firm, level ground so the support frame remains stable under feeding activity. Keep the surrounding footing reasonably dry to reduce slipping, mud and feed contamination. After the feeding period, remove spoiled feed and residue using cleaning methods appropriate for polyethylene, and inspect the liner for tears, sharp edges or loosening.
Check the steel frame, braces and any hay rack mounting points when moving or servicing the trough. Empty the bunk before repositioning and use suitable handling methods rather than dragging it loaded over rough ground. A few minutes of inspection can help identify a worn liner before the support frame is affected.
Ordering, Freight and Replacement Options
The 10-foot economy feed trough arrives fully assembled and weighs approximately 90 pounds. Plan for its length and configuration when arranging delivery and unloading, even though its weight is manageable relative to larger agricultural equipment. Request a freight quote before purchasing and provide the delivery ZIP code, quantity, and whether you need an optional hay rack.
If you need only the feeding surface, a compatible replacement liner may cost less to transport than a complete feeder. Explore the poly feed bunk collection for other sizes and configurations or contact Barn World for help choosing the complete bunk and accessories.
