Name: Sheep and Hog Scale System
Brand: osborne
Price: 2999.99 USD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

SHOP OUR OTHER ANIMAL SCALES!

Description

Package includes 18" x 55" aluminum platform scale, crate assembly, stainless steel digital indicator, rechargeable battery, AC adapter (charger), pre-calibration, and one-year warranty. Capacities: 500 lb. Shipping is estimated based on weight and location.

Specifications

Accuracy- Provides consistent accuracy within 0.5% and comes complete with a digital indicator and "motion control" software.
Portable - All aluminum construction for light-weight 110 lbs. Easy to relocate
Easy open and close gates
Low Profile- Small animals can easily step onto the scale, avoiding animal stress.
Durable- Complete with stainless steel, hermetically sealed load cells and a stainless steel, NEMA 4X battery-powered digital weight indicator.
Economical to Own- Low purchase price, virtually no maintenance cost, and economical replacement parts are readily available.

Features

Construction - Aluminum with non-skid platform surface protects animals and handlers from accidental falls. Gates can be easily lifted with one hand, reducing back strain.
Overload Capacity- Capable of withstanding 1,500 pounds of weight without damaging the scale.
Easy Assembly- No installation costs. No moving parts that require maintenance or adjustment.
Stainless Steel Junction Box- allows easy connection to the MTI500WB indicator.
Weight Sensor- The AHS5-00 uses four high-quality stainless steel, hermetically sealed load cells for superior performance and durability. These load cells can be submerged in water without failing.
Indicator- The Model MTI-500WB provides 5,000 divisions of certified accuracy with a back-light LCD display. Comes complete with RS-232 serial port for computer or printer connection. Includes rechargeable battery and AC adapter, which acts as a battery charger when plugged into the indicator. Also includes MTI's proprietary "motion control" software, which allows you to obtain a stable weight even if the animal is continuously moving on the platform.

Specifications:

Capacity- 500 lbs
Readability- 0.2 lbs.
Accuracy- 0.5%
Dimensions- Scale: 18" x 55" -- Pen: 22" x 60" x 38" -- gate raises 48"
Shipping Weight- approximately 150 pounds

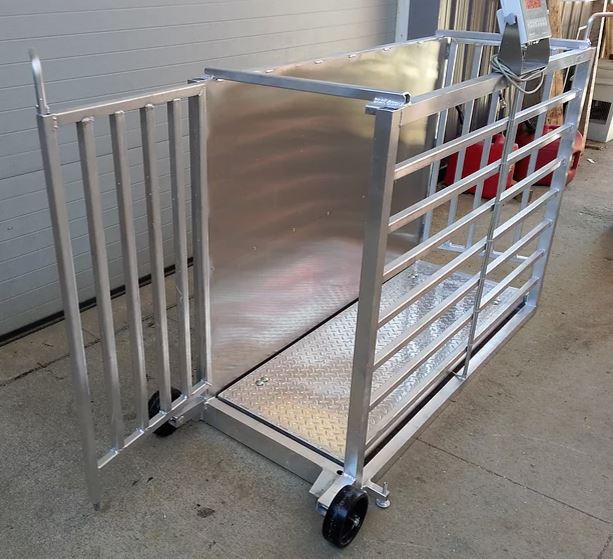

Pictures of the Scale

Below are some images of the sheep and hog scale

Hog Scale Display

A digital scale readout with hold, kilograms and pound readouts!

the hog scale digital indicator

Animal Scale with closed door

front of the hog scale door

Hog Scale swing wide entry door

hog scale entry gate swung open

Back of the Sheep Scale

back of the sheep scale

Do you have other portable hog scales that can also be used as a sheep scale?

Yes - see the 18" or 24" widehog scale

Can this scale be bolted to the floor if necessary? How many load cells does the unit have?

The Sheep and Hog Scale System has four load cells, but cannot be bolted to the floor.

We receive a quote, and have one other question. If at anytime we would happen to need replacement parts are they hard to get/

No. That is one of the features of our system. We built it with Industry standard compoennts to make it easy for the users to find parts if neeeded. We hope that you would ask us first if you need anything but, if you are in desparate need and a local supplier would work better, they are available there too. The manuals and service information is readily available as well.
