This tank has been discontinued.
Click here to view all of our metal stock tanks.

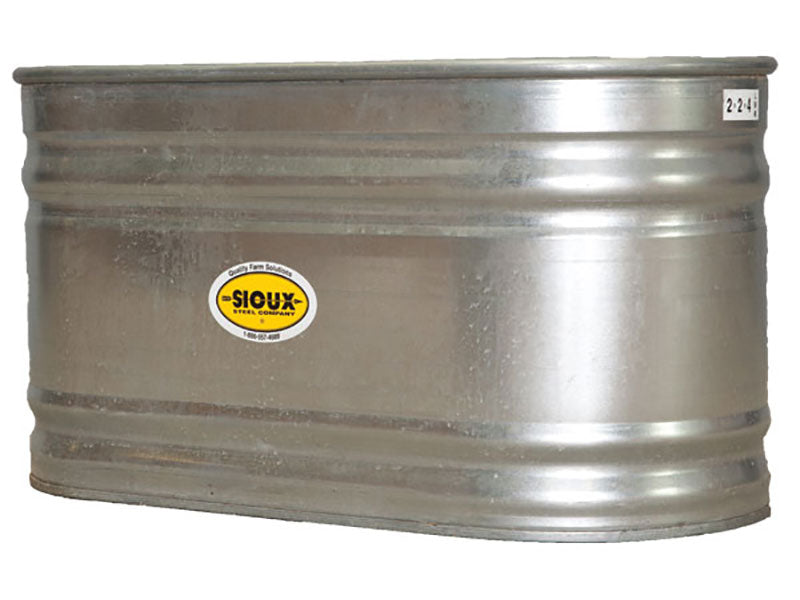

Stock Tank Description
These tough, dependable stock tanks are built to take abuse from all your livestock and farm & ranch animals. The extra-strong side wall has a rolled-over 7/8" O.D. steel pipe around the top to enhance the strength, rigidity, and longevity of the tank. The smooth interior wall surface and 3/4" threaded drain plug are built into each tank, making it easy to clean. The bottom is designed with a 4-ply bottom seal, which locks the side wall to the bottom and makes the unit water-tight, strong, and durable.
Specifications
- 20-gauge bottom.
- 224 Steel
- 7/8" O.D. steel pipe is rolled into the top edge for added strength and rigidity, and to protect animals, too.
- Two deep, horizontal corrugations strengthen the entire tank-smooth sides are easy to clean.
- Supreme quality G90 zinc coating on 20-gauge and 22-gauge steel adds twice the life.
- The drain Plug is easy to remove, but it is threaded, so it cannot loosen in use.
- 4-ply, double-lock seam is strong, durable, and prevents leakage.
- Poly grip adhesive seals seams leak-tight—smooth and sanitary.
Please note: These tanks ship from South Dakota, and the shipping for a single tank to the coasts of the US will most likely be more than the tank itself. Shipping two or more is preferred to keep shipping costs down. Please email for a quote before ordering.
Tank Details
- the top edge is rolled over a 7/8" od pipe for strength and to eliminate sharp edges
- smooth walls and a threaded drain plug for easy cleaning!
- strength is added to the walls with two horizontal corrugations, the entire length of the tank
- G90 zinc coating keeps corrosion away and doubles the life of the water tank
- seams are made with 4-ply, double-locked seals for strength and water-tightness
- seams also include an adhesive for a sanitary and very smooth finish
- See all of ourgalvanized stock tanks

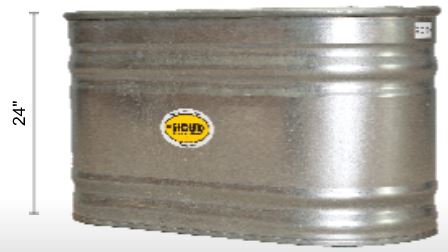

Pictures of galvanized stock tanks

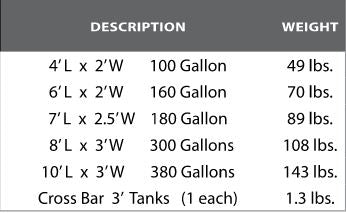

Dimensions of Metal Tanks
