12 x 20 Outdoor Storage Shed and Portable Garage
Create convenient covered storage for vehicles, equipment, tools, supplies, and other outdoor items with this 12 x 20 outdoor storage shed and portable garage. Measuring 12 feet wide by 20 feet long and 8 feet high, this versatile shelter provides 240 square feet of covered space without the need for a permanent garage or storage building.
The house-style frame provides additional sidewall clearance and usable headroom, making this outdoor storage shed well-suited for vehicle storage, equipment protection, material storage, and covered work areas. Large double-zipper doors at both ends provide convenient access and allow the shelter to be used as a drive-through portable garage when the installation site permits.
Durable Outdoor Storage Protection
The shelter uses a galvanized steel frame designed to provide a strong structural foundation for the fabric enclosure. Pre-drilled frame components simplify assembly and help reduce the number of tools required during installation.
The main cover and doors are constructed from heavy-duty 10 oz., 24 mil backed polyethylene fabric. The material is UV-protected and fire-retardant, with heat-welded seam construction. The main cover and doors meet CPAI-84 Section 5.
Whether you need additional space for a vehicle, lawn and garden equipment, farm supplies, seasonal items, or general property storage, this portable shelter offers a practical alternative to constructing a permanent storage building.
12 x 20 Portable Garage Features
- 12' W x 20' L x 8' H nominal size
- 240 square feet of covered storage space
- House-style design provides additional sidewall clearance and headroom
- Six frame arches spaced 48" apart
- 1-5/8" diameter galvanized steel frame members
- Heavy-duty galvanized finish on steel frame components
- Pre-drilled and pre-cut bolt-together frame design
- Wind brace supports on both sides
- 10 oz., 24 mil backed polyethylene main cover
- UV-protected and fire-retardant fabric
- Main cover and doors meet CPAI-84 Section 5
- Heat-welded seam construction
- Double-zipper doors at both ends for convenient access
- Bottom pockets and four bungee-cord door tie-backs
- Heavy-duty grommets on the cover and doors
- Heavy-duty poly rope for securing the main cover
- Protective plastic caps on open tube ends
- Plated hardware with retaining nuts and protective stainless steel washers
- Quick-assembly wrench included
- Six 36" earth anchors with U-bolts and drive rod included
- Available with green, gray, or tan exterior and bright white interior
- Average installation time of approximately two hours
Outdoor Shed Specifications
| Nominal Size | 12' W x 20' L x 8' H |
| Covered Area | 240 sq. ft. |
| Frame Arches | 6 arches on 48" spacing |
| Frame | 1-5/8" diameter galvanized steel |
| Frame Support | Wind braces on both sides |
| Door Configuration | Double-zipper door at each end |
| Door Opening | 9' W x 6' H* |
| Main Cover | 10 oz., 24 mil backed polyethylene fabric |
| Fabric Protection | UV-protected and fire-retardant |
| Fire-Retardant Standard | Main cover and doors meet CPAI-84 Section 5 |
| Anchoring | Six 36" anchors with U-bolts and drive rod |
| Exterior Colors | Green, gray, or tan |
| Interior Color | Bright white |
| Shipping Weight | 290 lbs. |

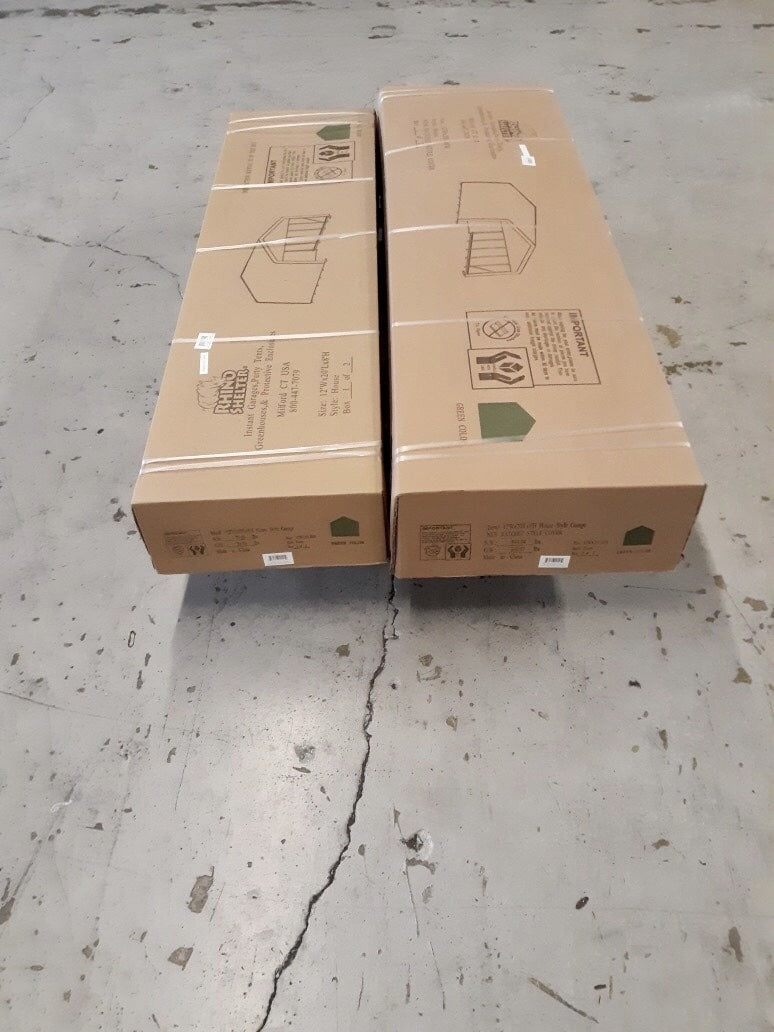

| Shipping | Ships in 2 boxes |
| Average Installation Time | Approximately 2 hours |
*The manufacturer's current product page lists the doors as 9' W x 6' H in its Included section and 10' W x 6' H in its Standard Specifications. Confirm the actual door opening before publishing this specification.
12 x 20 Shed for Vehicle and Equipment Storage
The 12-foot width and 20-foot length make this portable storage shed useful for a variety of residential, agricultural, and commercial storage needs. The large end openings make it easier to move vehicles and equipment in and out while still providing enclosed coverage when the doors are lowered.

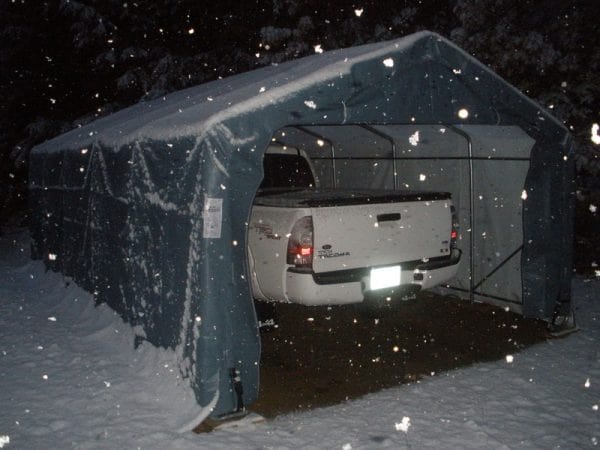

Common uses include storing cars, motorcycles, lawn tractors, ATVs, landscaping equipment, tools, building materials, and seasonal supplies. The shelter can also provide a covered workspace when temporary protection from the elements is needed.
Easy-Access Double-Door Design
Unlike storage shelters with access from only one end, this model includes a double-zipper door on both ends. Each opening measures approximately 9 feet wide by 6 feet high. The doors can be rolled up for access or lowered to provide enclosed storage and protection.
The two-door configuration is particularly useful when the shelter is positioned for drive-through access or when equipment needs to be reached from either end.
A Versatile 12 x 20 Storage Solution
With 240 square feet of covered space, access from both ends, and a galvanized steel frame, this shelter provides flexible storage for homes, farms, ranches, and commercial properties. Use it for vehicles and equipment, seasonal storage, supplies, or other items that need covered outdoor protection.
Shipping: Please contact Barn World for a freight quote to your delivery address.
