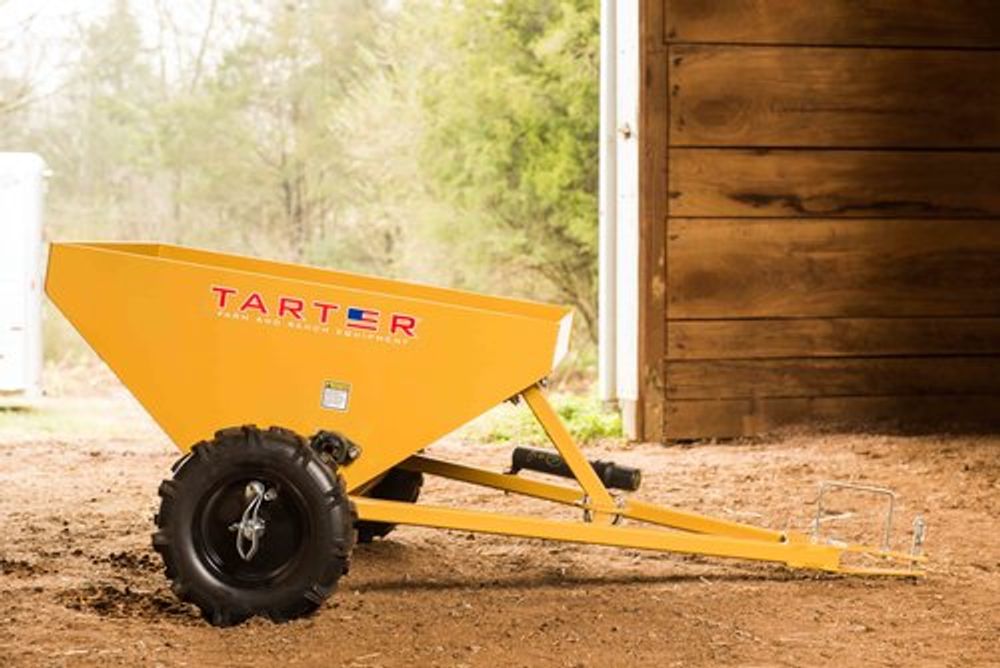

The Tarter MS1002 compact manure spreader holds 13 cubic feet and is designed for small horse barns. It uses a ground-driven aluminum spreading drum, so a compatible ATV, UTV, or garden tractor can tow it without a PTO connection.
Will the spreader fit your barn and tow vehicle?
The MS1002 measures 74 inches long, 51 inches wide, and 27 inches tall. Measure the narrowest doorway or gate with hardware in place, then check turning room for the tow vehicle and spreader together. The shorter body can be useful in a tight aisle, but the 51-inch width is the number to check at the doorway.
Check hitch fit and the tow vehicle manufacturer’s limits for the loaded spreader and your terrain. The listed weight is about 207 lb before loading. Wet manure and bedding can change the load weight considerably. Follow the Tarter MS1002 operator’s manual for hitching, loading, and operation.
Compare the Tarter and Roth compact spreaders
| Specification | Tarter MS1002 | Roth MS23B |
|---|---|---|
| Listed capacity | 13 cu. ft. | 28.62 cu. ft. heaped |
| Overall length | 74 in. | 101 in. |
| Overall width | 51 in. | 46½ in. |
| Overall height | 27 in. | 40 in. |
The Tarter is shorter and lower. The 28-cu.-ft. Roth manure spreader has more listed volume and is narrower overall. Choose by your route, loading routine, and tow vehicle. The two manufacturers describe capacity on their own terms, so use the listed dimensions when comparing physical fit.
How the ground-driven spreader works
As the unit rolls, the ground drive powers the aluminum spreading drum. The chain-driven system is controlled by a lever. The powder-coated steel frame supports the box and drive assembly. Tarter recommends shavings as in-stall bedding for best results. If your cleanup routinely includes a different bedding material, check the manual or ask Barn World before choosing a spreader.
Compact manure spreader FAQs
Do I need a tractor with a PTO?
The MS1002 is ground-driven. Confirm the hitch and loaded towing limits of the equipment you plan to use.
Is the 13-cu.-ft. model narrower than the Roth?
The Tarter is 51 inches wide and the Roth MS23B is 46½ inches wide. Measure your tightest opening before choosing.
What should I include in a delivered quote request?
Send the MS1002 model number, quantity, and delivery ZIP code. For help checking fit, include your tow vehicle model and the narrowest clearance along your loading route.
Compare more harrows and manure spreaders or browse tractor attachments.
