SEE ALL OF OUR GATES

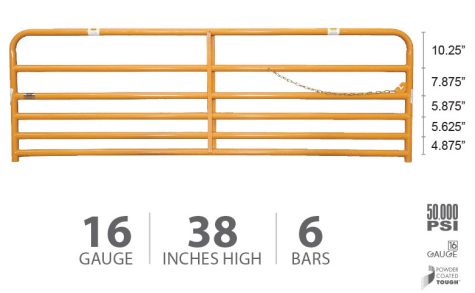

Hog Gate Dimensions and Specifications
These hog gates are purpose-built for hog containment and daily farm use. Constructed from 16-gauge, 50,000 PSI structural steel tubing, each gate delivers exceptional strength, longevity, and resistance to impact.
- Gate height: 38 inches
- Six-bar heavy-duty construction
- Rounded shoulders for safety
- Z-bar vertical bracing for added strength
- Powder-coated finish for corrosion resistance
- Includes T-slot chain latch system
- Hinges sold separately
Hog Gate Description
This heavy-duty hog gate is engineered for long-term performance in demanding livestock environments. Built from 2-inch, 16-gauge steel tubing and finished with a durable powder-coated prairie gold finish, this gate is designed to withstand aggressive hogs, harsh weather, and daily farm use without bending or rusting.
Each hog gate includes a patented T-slot latch locking system and a 36-inch securing chain to ensure reliable closure and easy operation when moving or containing pigs. The latch design allows for smooth opening and secure locking, even when handling large groups of hogs.
Standing 38 inches tall, this gate features heavy-duty Z-bar vertical uprights and a reinforced six-bar construction specifically designed to prevent climbing, leaning, or pushing by pigs and sows. Rounded shoulders enhance safety for both livestock and handlers, making this gate ideal for pens, alleyways, and confinement areas.
Important: Gates are approximately 5 inches shorter than the listed length to allow for the addition of hinges, which are sold separately.
Hog Gate Weights by Length
- 4' – 36 lbs
- 6' – 51 lbs
- 8' – 70 lbs
- 10' – 86 lbs
- 12' – 106 lbs
- 14' – 122 lbs
- 16' – 144 lbs
- 18' – 163 lbs
- 20' – 190 lbs

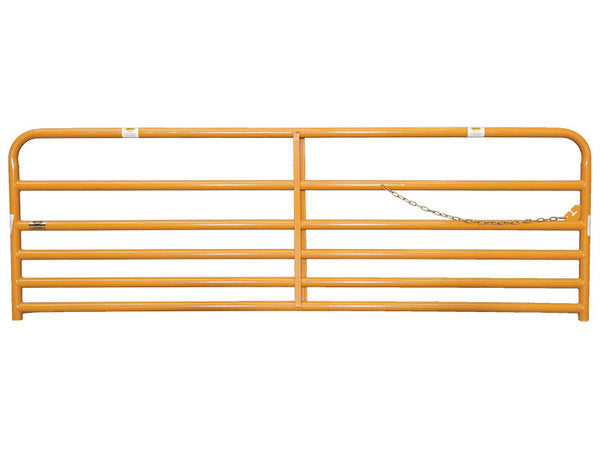

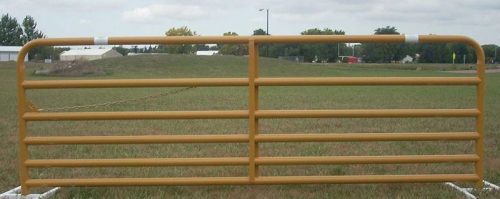

Picture of the Hog Gate
With Z-bar vertical braces, a rounded top design, and a long-lasting powder-coated finish, this hog gate is one of our most popular livestock gates and a dependable solution for farms and ranches that demand durability.
Customer Review: A Strong Hog Gate That Holds Up on the Farm
“I’ve been raising hogs for years and have gone through plenty of gates. Some bend too easily, some rust out, and others are just hard to use. This 12-foot hog gate from Barn World has been one of the best I’ve owned.
It’s built from heavy-duty steel and doesn’t flex when hogs lean on it. I’ve had it outside in all kinds of weather, and it’s holding up without rust or damage. The latch works smoothly, which makes moving hogs a lot easier and safer.
If you’re looking for a solid, long-lasting hog gate that does exactly what it’s supposed to do, this one is worth the investment.”
