Cattle handling and working equipment
Using a Self-Catching Headgate in a Working Alley
A self-catching headgate helps secure an animal at the front of a chute while a handler performs appropriate processing tasks. It is not a substitute for a well-designed crowding area: cattle should move through the approach without sharp turns, unstable footing or unnecessary distractions. A calm entry reduces pressure on the equipment and the animals.
Headgate Selection and Adjustment
Compare the opening, frame dimensions and release arrangement with the cattle you handle and the existing chute. Confirm that the gate can be mounted according to its instructions and that the operator can reach the controls from a protected position. Review whether your system also requires a squeeze section, back gate or other restraint components.
Daily Inspection
Check the self-catch action, latch engagement and release function before processing. Look for worn or bent components and remove the equipment from service if it does not operate correctly. Keep the area around the headgate clear of loose chains, tools and other objects that could interfere with moving parts.
Frequently Asked Questions
Will the headgate fit every cattle chute? No. Verify the mounting pattern and dimensions of both products before ordering.
Does a self-catching design eliminate the need for a handler? No. Trained supervision and safe release procedures remain essential.
Planning a Self-Catch Headgate Installation
A self-catching headgate can support routine cattle processing by catching the animal as it enters the restraint area. The approach alley, headgate adjustment and operator location all influence how smoothly the equipment works.
Daily Use, Safety and Maintenance
Measure the existing chute and inspect the intended mounting points. Keep handlers out of the animal's direct path, learn the emergency release and inspect moving parts before every use. Choose a configuration that fits the size of cattle normally handled.
Frequently Asked Question
What should be checked before requesting a quote? Provide the intended chute or alley arrangement, opening dimensions and delivery location so compatibility and freight can be discussed.
Before Ordering
Review the product specifications and site measurements. For freight-quoted equipment, share your quantity, delivery ZIP code and unloading arrangements with Barn World.
Self-Catch Operation for Cattle Handling
The Powder River S1500 is a self-catching cattle headgate designed as a practical option for livestock handling systems. It uses simple adjustments and a 31.5-inch release opening. The self-catch design can support single-person operation when the headgate is correctly installed, adjusted and used as part of a suitable working system.
This product is the headgate, not a complete squeeze chute. It can attach to compatible Powder River panels or be adapted to an existing alleyway. Check the mounting arrangement and surrounding handling equipment before choosing it as a replacement or adding it to a new setup.
How the Self-Catching Headgate Works
The self-catching mechanism helps capture the animal as it enters a correctly prepared headgate. The operator still needs to set and adjust the equipment, manage cattle movement and control release. Self-catching does not mean the handling process is unattended or entirely hands-free.
A headgate controls the head and neck area; it does not provide the body restraint of a complete squeeze chute. Consider the restraint and access required for the work being performed, along with the animals' size and behavior, when planning the rest of the system.
Specifications and Opening Dimensions
| Specification | Details |
|---|---|
| Model | S1500 self-catch headgate |
| Product number | 001-52800 |
| Listed weight | 215 pounds |
| Inside height | 58 inches |
| Overall height | 73 5/8 inches |
| Overall frame width | 38 5/16 inches |
| Animal release opening width | 31.5 inches |
| Mounting | Compatible Powder River panels or an appropriately adapted alleyway |
The 31.5-inch release opening is distinct from the overall frame width. Use the overall dimensions when checking installation space and the opening dimensions when assessing animal passage. Confirm the required mounting hardware and adapters for your existing panels, posts or alley.

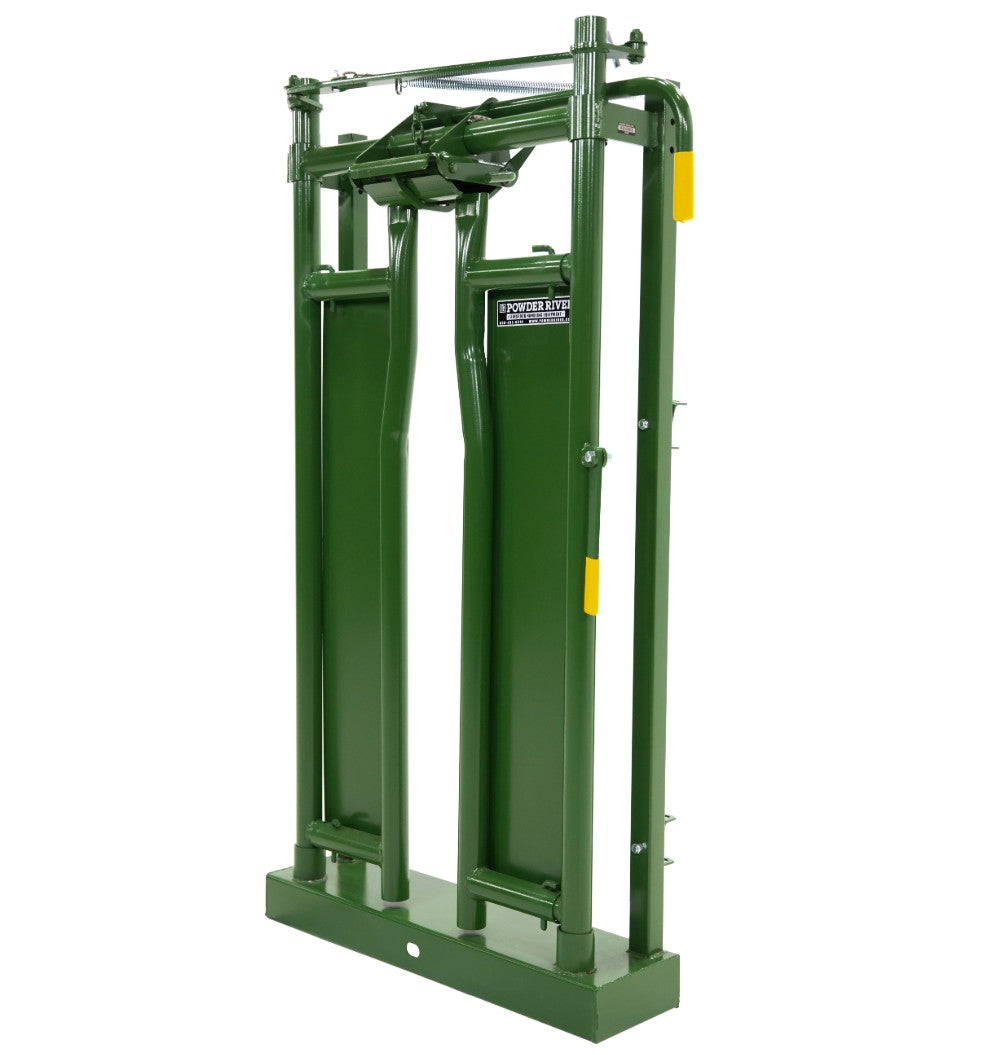

S1500 Headgate Pictures
S1500 Headgate Video
Planning Your Alley or Chute Installation
Check how the headgate will connect to the existing working system and allow room for the operator to reach the controls. Review the approach alley and release area so animals can move through the system without obstructions. A compatible connection and suitable support are as important as the headgate dimensions.
Before using a new installation, inspect the mounting points and moving components, make the appropriate adjustments and become familiar with the catch and release operation. Continue checking the mechanism and connections during routine maintenance.
Choosing the Right Headgate
Compare the S1500 with your handling needs rather than choosing solely by price or the self-catch feature. Animal size, temperament, the surrounding equipment and the work being performed all affect suitability. Contact Barn World with your current setup and livestock requirements if you need help comparing options.
Request a Delivered Quote
Provide the delivery location and details of any mounting or compatibility questions when requesting a quote. Photos or measurements of the existing alley or panel connections can help identify the information needed before ordering.
