Manual Cattle Headgate with Spring Return

Roll over image to zoom in Click on image to zoom

Using a Manual-Return Headgate

A manual-return headgate allows the handler to control closure and release rather than relying on a self-catching return. The hydraulic-assisted release is intended to help when an animal presses against the gate, making correct operator training and positioning important.

Practical Use and Maintenance

Compare chute dimensions and connection points before replacing an existing headgate. Confirm which side the operator will use, keep the work area clear and inspect moving components and hydraulic fittings according to the supplied instructions.

Buying and Delivery Guidance

Check the listed dimensions and configuration against your site before ordering. For freight-priced equipment, request a delivered quote with your quantity, destination ZIP code and unloading details.

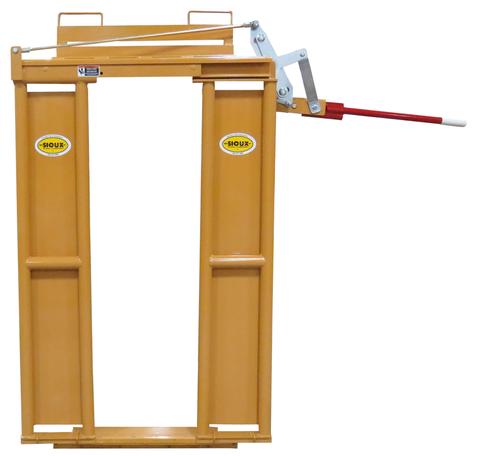

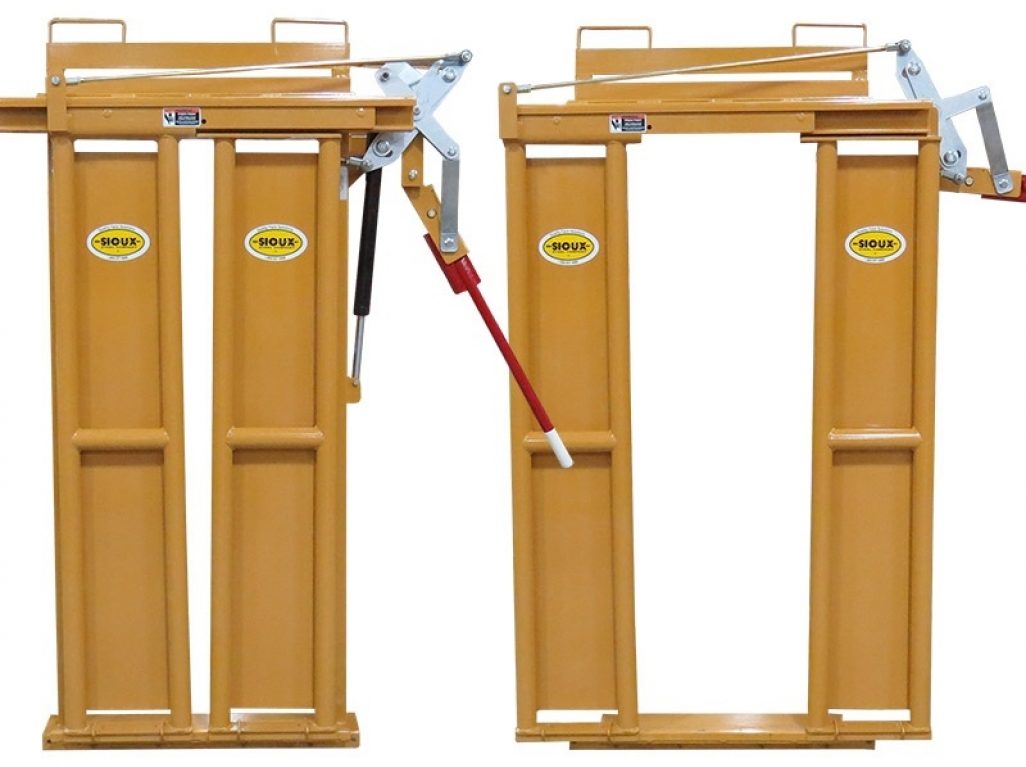

Hydraulically assisted manual cattle headgate

This Sioux Steel headgate gives the operator manual control. To open the gate when cattle put pressure on it, the operator moves the lever to open the hydraulic check valve. The gate has a 24-inch opening at both the top and bottom and weighs 319 lb.

Manual or self-catching headgate?

Choose a manual cattle headgate if you want the operator to control when the gate closes as an animal enters the chute. The hydraulic assist helps with release when an animal is pressing on the gate. If you want the gate to catch as the animal moves into position and reset after release, compare the automatic return headgate.

When replacing a headgate, start with the chute model and how you work cattle through it. An operator who works from a walkway on one side may need a different configuration from one who works from the opposite side.

Choose left or right

Determine the operating side while facing the same direction the cattle face as they enter the headgate.

Left-hand operation: S202800
Right-hand operation: S208753

Confirm fit before ordering. Include your chute model, preferred operating side, and delivery ZIP code when requesting a quote. Some equipment combinations require a mounting adapter.

Check the mounting setup

Send the chute make and model and, if available, photos of the mounting face and the operator side. This helps Barn World check whether the headgate fits directly or requires an adapter. Tell us whether you are replacing an existing gate or adding one to a new chute.

Manual headgate FAQs

Does the hydraulic assist close the gate automatically?

The operator controls the manual headgate. The hydraulic check valve assists with opening the gate when the animal puts pressure on it.

How do I tell left from right if I’m standing in front of the chute?

Use the animal’s direction of travel as your reference. Face forward as the animal would face in the headgate, then identify which side you want to operate from.
