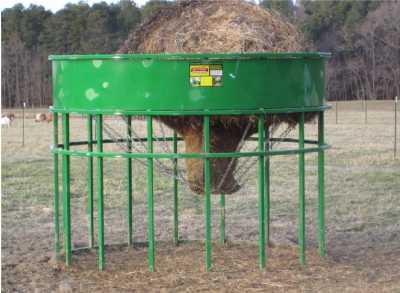

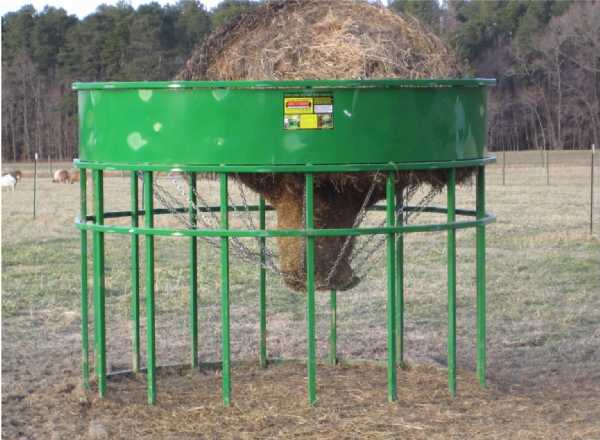

Keep your hay suspended and free from ground moisture with this sheep and goat hay feeder from Barn World. It is specifically designed for smaller livestock that aren't quite tall enough to reach over a full-height skirt. The inside diameter is 7' 6" and it has an overall height of 68" with the horizontal & vertical frames being made of heavy-duty, 14 gauge steel. The square tubes of this powder-coated feeder are made with 1-1/4" square tubes for additional strength.
Hay Feeder Details:
- Inside diameter - 7 ft 6 inches
- Horizontal rings and vertical tubes - 14 Ga. 1.25 square tube
- Frame - 14 gauge, 1-1/4" square tubing
- The top skirt is made with 16 gauge steel
- Height": 68"
- Number of openings - 16
- Cone - 16 chains made from 3/16 proof coil chains rated at 800 lbs. with a safety factor of 2 (Calculation - 2,000 lb. bale being held up by 16 chains = 2,000/16 = 125 lbs. per chain) This is well within the 800-lb. rating of the chain.
- Finish - Industrial powder coating
- Total weight - 357 lbs.
- Patent Pending
Suspended Hay Advantages:
- Our unique proof coil chain insert allows us to simply disconnect the chain from one half of the feeder. Then nest the two halves of the feeder together for shipping. Most cone feeders have a round feeder on the bottom and a cone insert on the top. This is just more parts to ship and more parts to assemble.
- Sheep and goats do not have to try and reach through the round bale feeder in order to reach the middle of the bale. They simply walk under the feeder.
- Each vertical tube that has a chain attached to it runs all the way to the ground. This means the load of the bale goes through the chain, through the tube, and then directly to the ground.
- Our feeder is powder coated and then all tubes are either capped or sealed to keep water out.
Video review of the horse hay feeder
To see all of our hay feeders, click here!
If you are looking for a heavy-duty hay feeder that will pay for itself you’ve come to the right place. Our hay hopper feeder will eliminate waste immediately. If you are currently using a standard hay feeder, you are typically losing 10% of your hay to waste. If your hay is $100 per ton and you feed 2,000 pounds per day, you could be saving $300 a month for $3600 a year just by using this feeder.
The feeder comes with or without the steel skirt around the bottom. An open bottom feeder is designed for use with smaller animals that can’t reach over the standard skirt.
The two-piece design makes shipping more affordable throughout the US please let us know if we can email a quote with shipping to your address and we’ll be happy to do so.
Don’t continue to throw away your hard-earned money on wasted hay. Get a hay hopper feeder and start saving money immediately.
