Name: Floor Scale 1,000 pound capacity
Brand: Brecknell - Not Active
Price: 599.99 USD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

SHOP OUR OTHER ANIMAL SCALES!

This 1,000 pound capacity multipurpose floor scale can weight everything from animals to packages. The tough steel platform measures 55.5 inches by 20.1 inches and has ramps on both ends for easy access. The long 15-foot cable allows for easy reading, and the scale is pre-calibrated and even the indicator in made of stainless steel. The AC adapter is included as is the 6V DC rechargeable battery and AC adapter.

Platform Scale Specification of the PS 1000

Capacity - 1000 lb

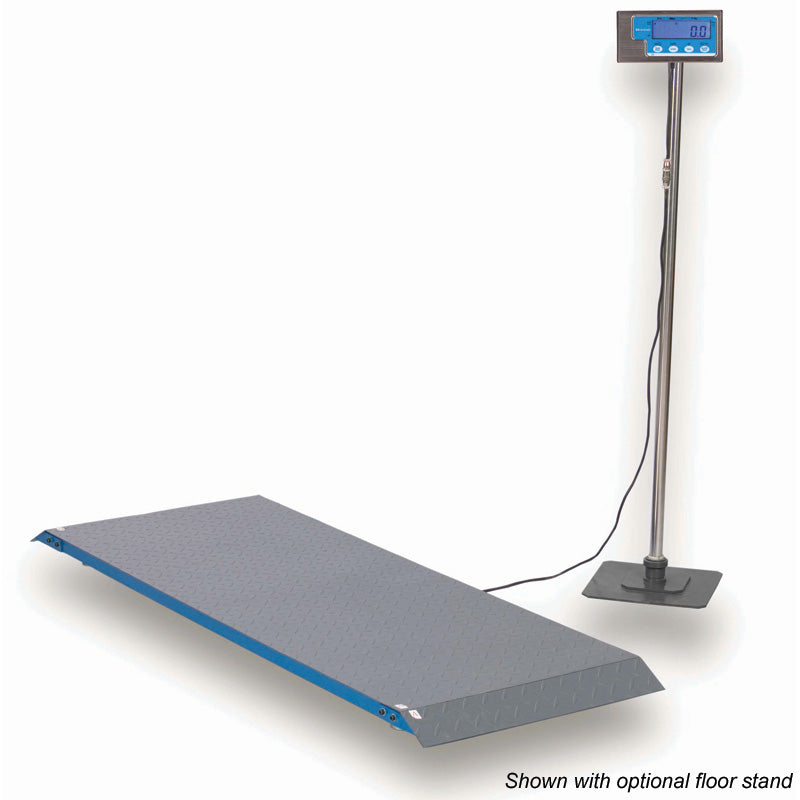

Optional Indicator Stand Available
Accurate - Provides consistent accuracy within 0.1% and comes equipped with an indicator for fast digital read out.
Economical to Own - There are no installation costs and no moving parts that require maintenance or adjustment.
Low Profile - 2.50" high
Versatile - Accomplishes a multitude of weighing jobs: livestock, pets, feed carts, bulk containers, shipping and receiving.
Portable - The PS1000 weighs only 60 lbs, two easy access carry handles makes this scale convenient to relocate. No need for ramps or recessed floors, as this unit comes with ramped ends.
1 year warranty on parts & labor on manufacturer defects

Features

Construction Rugged steel with tread plate surface protects animals and handlers from accidental slips and falls. Adjustable foot pads allow scale to work effectively on uneven floors.

Overload Capacity Capable of withstanding 150% capacity of weight without damaging the scale

Easy Assemblyâ€“ No installation costs or parts that require maintenance. Just place the scale on a hard surface and level by adjusting the foot pads. Connect the indicator and turn on the power.

Specifications

Capacity -
PS1000: 1,000 lb x 0.5 lb (500 kg x 0.2 kg)
Power Four (4) AAA batteries or 6 VDC, 500mA adapter, both included Operating Temp 41 ° F to 95 ° F (5 ° C to 35 ° C)
Battery Life 20 hours
Display Five 0.625" digits (17 mm) LCD
Serial Port One full duplex RS232, with cable
Keyboard Hold/Print, Units, Tare, On/Off/Zero
Unit lb, kg, lb/oz
Indicator 6.5" L x 3.2" H x 1.2" W
Scale Weight & Dimensions
PS1000: 60 lb (27 kg) 55.75" L x 20.25" W x 2.5" H
PS2000: 105 lb (48 kg) 59" L x 30" W x 2.5" H
Scale Carton Weight & Dimensions â€“
PS1000: 90 lb (41 kg) 57.5" L x 22" W x 4" H
PS2000: 118 lb (54 kg) 64" L x 36" W x 7" H
Option Indicator stand
Stand height: 36"; weight 11 lb
Stand base: 11.5" L x 11.5" W x .75" H
Certifications Full FCC compliance, UL/CUL power adapter

Would this be a good scale for weighing new born calves? To keep in the barn and when need bring out on the back of a flat bed and used where the calf is tagged at. Thank you

This scale if very popular and is a great multipurpose livestock scale used for all sorts of livestock weighing. The maximum load is 1,000 lbs and would be great for newborns. If you'd like a shipping quote, please forward your delivery zip code and we will reply with a quote for your review.

I want this scale. I can make a cage no prob. now how do I git it.

You may order online and we will forward a shipping quote for your approval, or you may email us for a quote prior to ordering at Sales@BarnWorld.com and we will reply with the shipping for your review. You may also call us at 720.238.2190.

What is the warranty on the scale?

There is a 1 year warranty on parts & labor on manufacturer defects

Can this scale stay outside and get wet?

Both the PS1000 and PS2000 are not weatherproof. They can get wet if the water is minimal ie: from an animal or if it got caught in the rain, but it is recommended that it be dried off and stored indoors.

We are located in the Philippines, do you have retailers you work with here or within Asia? Thanks

no we do not. You would have to purchase from US and ship to Philippines.

HOw do you calibrate the scales. Our PS 2000 is only weighing up to 1000 lbs.

Attached is the calibration procedure for the PS2000 floor scale. For technical questions you may call 800-242-2807 for Brad or Carol in the service tech support group. We are available Monday through Friday 8am to 5pm CST. CALIBRATION OF THE PS-2000 A minimum 25% of scale capacity is needed in order to calibrate the scale. 1. Turn on the scale. The indicator goes thru display test. When it becomes stable, we are ready to calibrate the scale. With no weight on the scale. 2. Press the TARE and the ZERO/OFF/ON buttons at the same time, the display will show Cal.-? 3. Press the TARE button, then the display will show the capacity of the scale 2000 then d-- 1 CAL.P0 Follow by 0 with the digit flashing. 4. Press the TARE button, the display will flash and show CAL.P1, 1000.You will need to key in a calibration weigh equal to 500 lbs. or the calibration weight that you have. (A minimum 25% of scale capacity is needed in order to calibrate the scale.) Place the weight on the scale, and key in your calibration weight from right to left by using the UNIT key to scroll your numbers up/down and use the HOLD/PRINT key to advance you to the left to enter your next number. Do this until the last digit on the left is flashing. 5. Press the TARE button, the display will flash and display CAL.P2, with calibration weight still on the scale. You will need to key in your calibration weight from right to left, using the same procedure in STEP 4. 6. Press the TARE button, the display will flash and display CAL.P0. then 0 Take calibration weight off the scale. 7. Press the TARE button, the display will flash 0 and go back to the weigh mode. Your scale is calibrated and should weigh correctly. If for some reason this does not work with your scale please call Salter Brecknell Technical Support

do you have drawings for a cage to built around the scale? A cage is needed to weigh hogs! Like others have written, a cage is needed! If you had one available or drawings to build one, 4-H and FFA members/chapters would probably purchase more.

No, we do not have drawings for a cage. I know there are many local suppliers that can provide you with a cage. The scale would simply sit underneath the cage.

Is there a cage available for this scale? Shirlene Jones, NM Boys Ranch

Their is no cage available for this scale at this time, however others have built their own around it.

How are you going to weigh a hog on scale with no side rails? Tough to do

This scale is put into alley ways or people build their own rails around the scale for hog weighing.

I was looking at the PS1000 and PS2000 scales. Can a cage, for sheep/goats/pigs, be built to attach to the platform? If it was bolted down, would you be able to just zero out the scale and weigh the animal?

Yes you can build a cage and attach to the bottom. However you would need to take the load cells out before you did this so that you would not damage them. You would also have to recalibrate and your maximum weighing capacity would decrease. You can build a cage around it and place the PS1000 in it like an alleyway. This is how some hog crate scales are made.
