These large concrete footings will require that a mechanical means of unloading be available upon delivery.

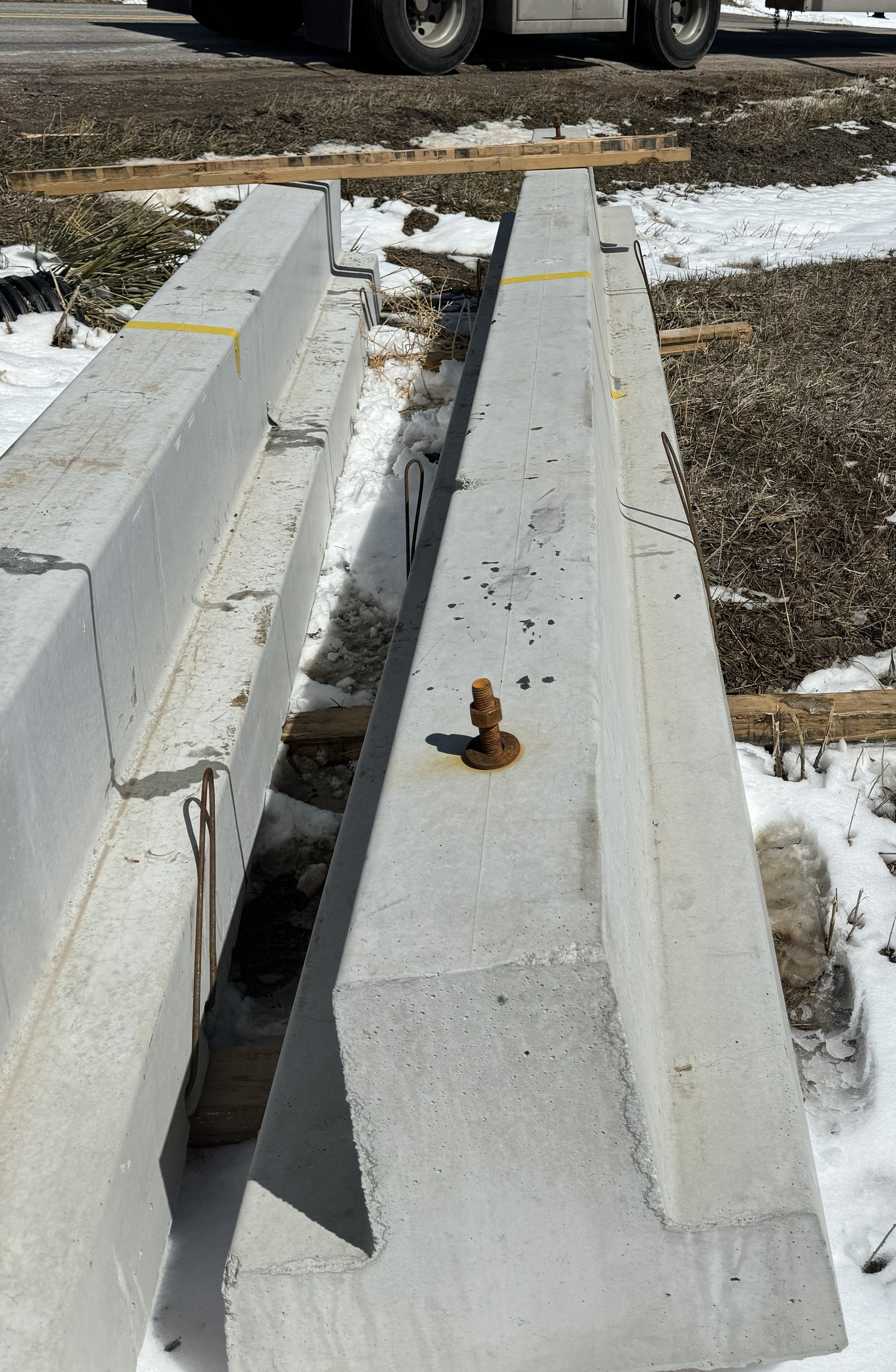

Precast Concrete Foundations for Cattle Guards

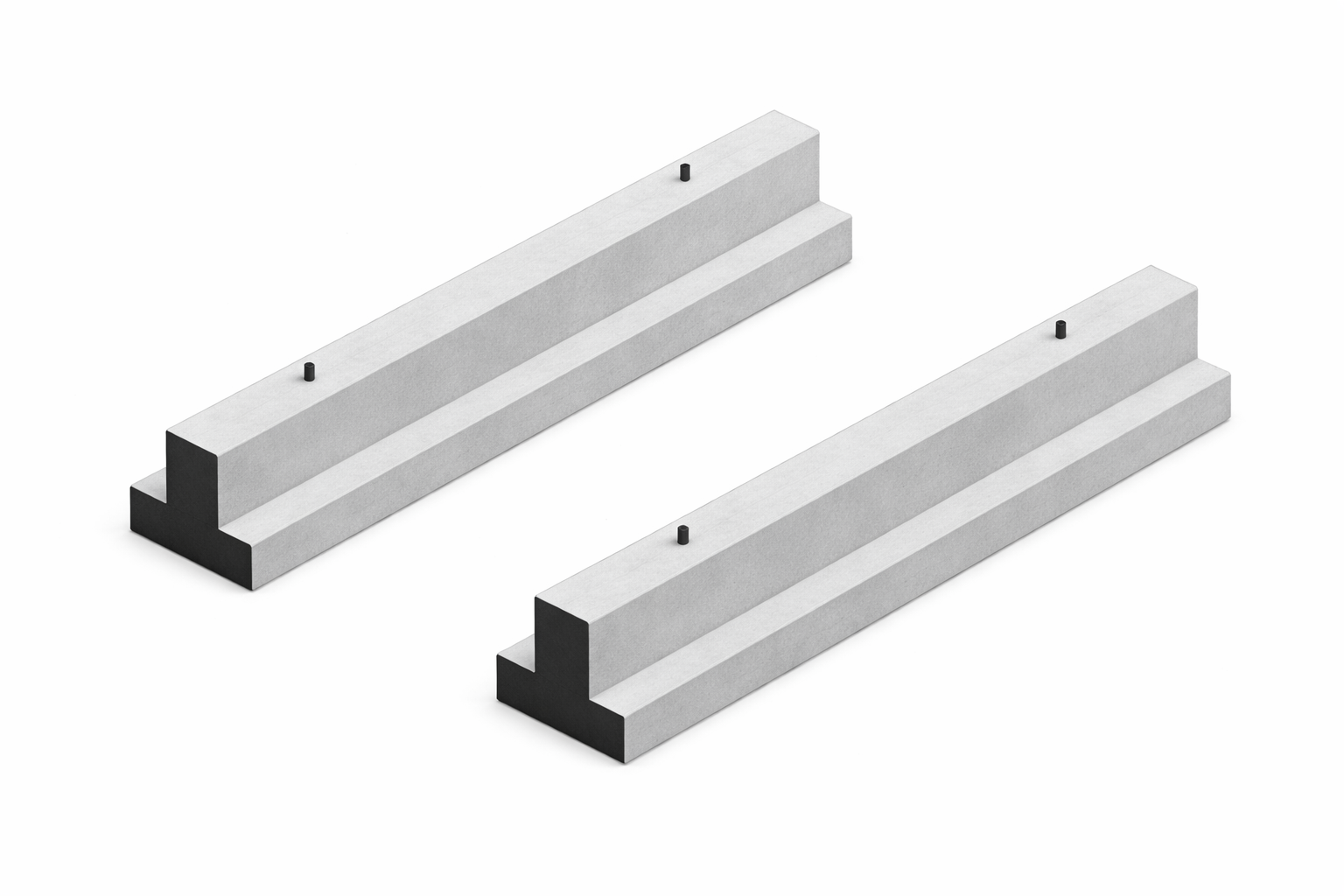

Our precast concrete foundations are engineered specifically for use with flat top rail cattle grids , providing a precast base for compatible steel cattle guards. These footings reduce the need for on-site concrete pouring. Confirm the foundation dimensions and attachment locations against the drawings for your selected cattle guard before ordering.
Cattle Guard Foundation Features & Benefits
- Precision-made to fit 8' and 14' flat top rail cattle guards securely
- Heavy-duty precast concrete with embedded 3/4" J-bolts for attachment to a compatible cattle guard
- 8-foot foundations weigh approximately 2,000 lbs; 14-foot foundations weigh about 3,500 lbs
- Delivered precast; prepare the site and set the foundations according to the applicable drawings and site requirements
- Requires mechanical assistance for unloading at delivery
Save time and labor with our precast concrete footings shipped directly with your cattle guard. Precast footings reduce on-site concrete work; excavation, bearing support, drainage, and frost conditions still need to be addressed before installation.
Important: Always consult a local contractor familiar with soil conditions, drainage, and frost lines to ensure your cattle guard foundation is installed properly for maximum durability and performance.
Review the foundation drawings below with your installer to confirm dimensions, attachment locations, and site-preparation requirements.

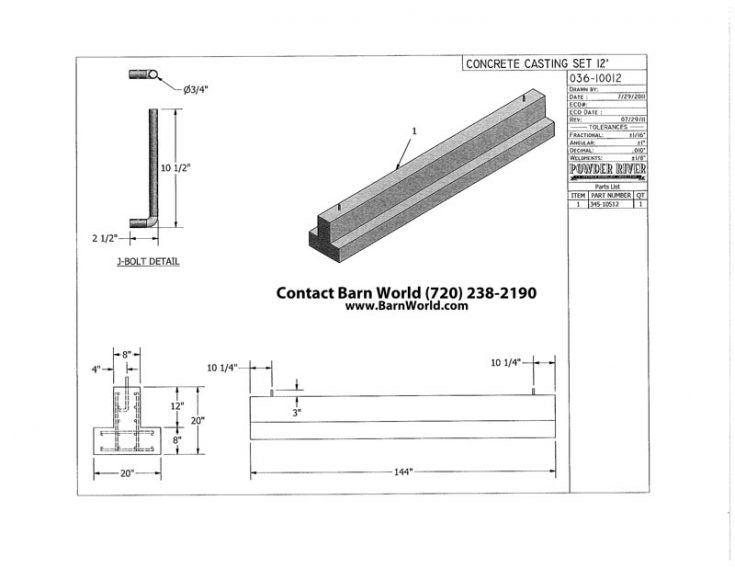

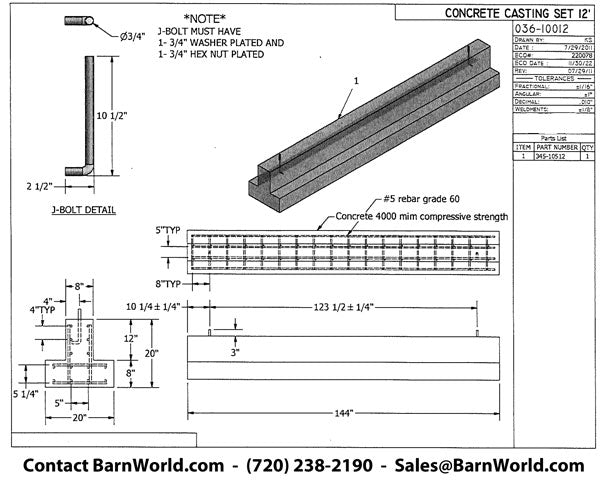

Foundation Spec Drawings

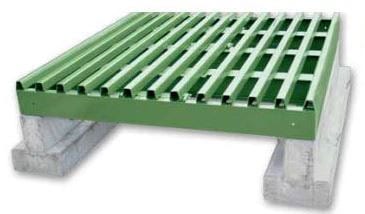

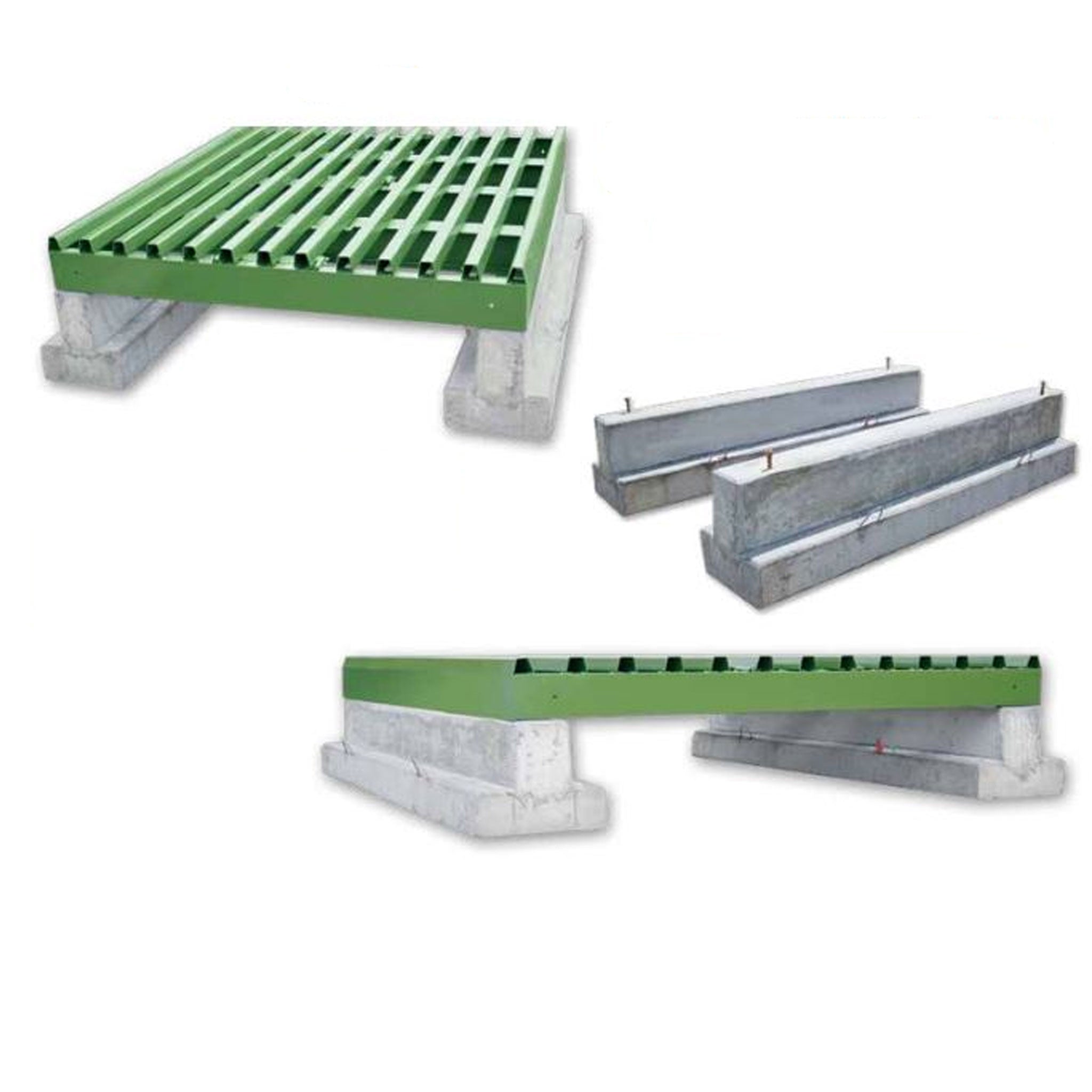

Cattle Guard on Foundations
See our entire selection of cattle crossing foundations and wings.
