Cattle Guard H15 - 10' Long


Color: Green
Size: 7.5' Deep x 10' Long - H15
Price:
Sale price$3,599.99

Engineered for strength, this H-15 cattle guard supports 12 tons per axle, providing durable performance for fully loaded semis and farm & ranch use.

This 10-foot H-15 cattle guard is a flat-rail steel livestock crossing designed for ranch entrances, agricultural roads and other suitable vehicle access points. Its published H-15 load rating is 12 tons per axle, and its flat-top rail design provides a vehicle crossing while creating a deterrent to livestock movement.

The cattle guard spans a 10-foot roadway opening and is constructed with seven 8-inch C-channel support beams, according to the original product specifications. Optional steel wings and precast concrete foundations are available for installations requiring a complete fence-line crossing.

Explore Barn World's H-15 cattle guards to review additional available lengths.

10-Foot Flat-Rail Cattle Guard for Ranch Roads

A cattle guard allows vehicles to cross a fence line without requiring drivers to open and close a conventional gate each time.

The steel rails form a crossing surface above an open space that discourages many livestock animals from attempting to cross.

This 10-foot model is intended for locations where the roadway and vehicle tracking can be accommodated by its dimensions.

Before ordering, confirm the actual road width, vehicle wheel paths, guard travel depth, foundation design and site requirements.

H-15 Cattle Guard Specifications

10-Foot H-15 Flat-Rail Cattle Guard
Published Rating H-15
Published Axle Capacity 12 tons per axle
Roadway Span 10 feet
Crossing Surface Flat-top steel rails
Support Structure Seven 8-inch C-channel beams
Optional Accessories Steel wings and precast concrete foundations
Typical Applications Agricultural and ranch roadway crossings where the rating and installation are suitable

Load-rating note: The published 12-ton-per-axle figure must not be increased by an assumed safety factor. Verify actual vehicle axle loads and applicable engineering or roadway requirements before installation.

Understanding the H-15 Load Rating

The manufacturer publishes an H-15 rating of 12 tons per axle for this model.

That rating is important when evaluating the crossing for trucks, trailers and agricultural equipment.

However, a load-rating designation alone does not establish suitability for every vehicle or roadway.

Axle configuration, axle spacing, vehicle loads, installation conditions and applicable engineering requirements must also be considered.

For heavier applications, review the available flat-rail cattle guards and their published ratings.

Why Roadway Width Matters

The 10-foot dimension describes the listed span across the roadway.

When planning an installation, measure the usable travel width and consider the wheel paths of vehicles that will use the crossing.

Large trucks, trailers and equipment may require more room than passenger vehicles, especially where the road approaches at an angle.

The selected guard must also accommodate the required approach and foundation arrangement.

Confirm all dimensions against the current product drawing before excavation or foundation construction.

Flat Rails Versus Round Rails

Cattle guards are available with different rail profiles.

This model uses flat-top rails that form the vehicle crossing surface.

Round-rail cattle guards use a different rail shape and may be selected for different applications.

The appropriate design depends on vehicle use, livestock-management requirements and the manufacturer's specifications.

Neither rail profile should be assumed suitable for all livestock species or all road conditions.

How Cattle Guards Help Control Livestock Movement

A cattle guard creates a physical and visual obstacle at a fence-line opening.

The spaces between the rails discourage many cattle from crossing, while allowing appropriately sized vehicles to travel over the grid.

Effectiveness depends on the livestock, guard configuration and surrounding fence installation.

Cattle guards should not be treated as a guaranteed barrier for every animal, particularly smaller livestock or animals that may attempt to jump or cross the rails.

Additional fencing or gates may be necessary depending on the operation.

Installed Flat-Rail Cattle Guard

Installed steel cattle guard at a roadway crossing

Truck Crossing a Cattle Guard

Semi truck crossing an installed cattle guard

Passenger Vehicle Crossing

Passenger vehicle crossing a cattle guard on a road

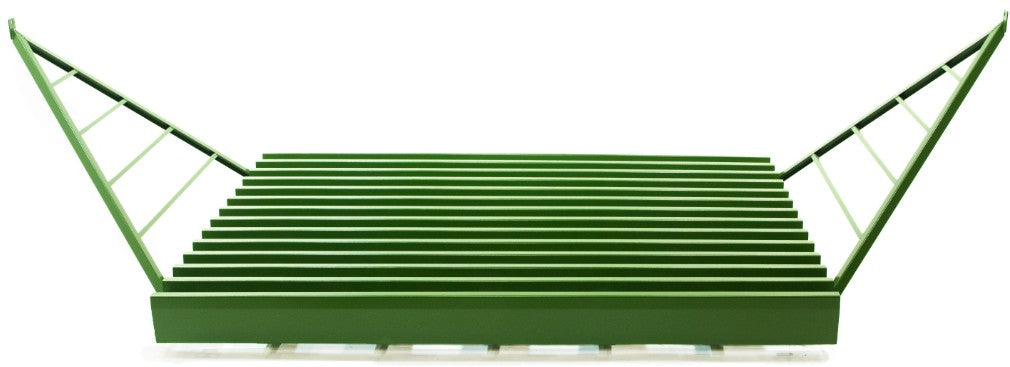

Optional Steel Cattle Guard Wings

Wings help close the gap between the cattle guard and the adjoining fence line.

Without an appropriate connection, livestock may be able to walk around the end of the crossing.

The original product description identifies triangular steel wings supported by posts.

These components can be incorporated into the fence arrangement to create a more complete livestock barrier.

Review Barn World's cattle guard wing ends when planning the installation.

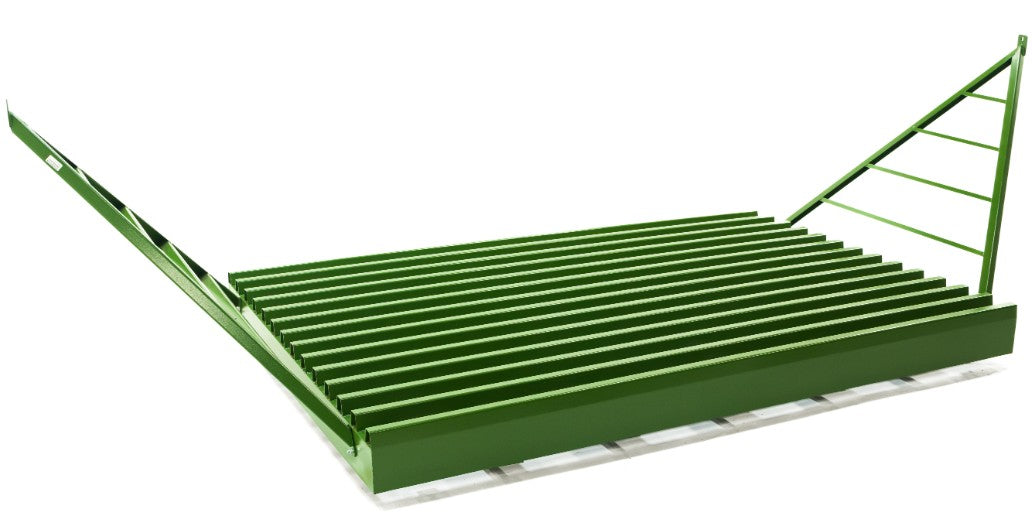

Cattle Guard with Wing Arrangement

Heavy-duty cattle guard installed in a roadway

Cattle Guard Wing and Support Post

Steel cattle guard wing and support post for fence-line connection

Precast Concrete Cattle Guard Foundations

Precast concrete foundations are available as an installation option.

The original description identifies foundation pairs with embedded J-bolts designed to secure compatible cattle guards.

Precast components can reduce the amount of concrete forming and pouring required at the installation site.

They do not eliminate the need for proper excavation, base preparation, positioning or verification of load-bearing conditions.

Foundation selection must match the exact guard and site requirements.

See Barn World's cattle guard wings and foundations for related installation components.

Precast Cattle Guard Foundations

Precast concrete cattle guard foundations with mounting hardware

Concrete Foundation Diagram

Diagram showing concrete cattle guard foundation configuration

Planning a Cattle Guard Installation

Installation planning should begin before the cattle guard arrives.

Important considerations include:

  • Roadway dimensions: Measure the intended crossing and approach widths.
  • Vehicle loads: Confirm actual axle loads and required rating.
  • Foundation design: Verify the manufacturer's required support and anchoring arrangement.
  • Site drainage: Plan for water movement around and beneath the crossing.
  • Fence connections: Determine whether steel wings or additional fencing are required.
  • Unloading equipment: Arrange suitable lifting equipment before delivery.
  • Maintenance access: Consider how debris will be removed from beneath the grid.
  • Approvals: Confirm any applicable roadway, engineering or local permitting requirements.

Installation should follow the current manufacturer's documentation and applicable site requirements.

Foundation and Anchoring Considerations

The cattle guard must be properly supported and secured.

The original product information describes compatible precast foundations that include embedded J-bolts.

These bolts are intended to align with the guard's mounting arrangement.

Correct positioning is important for a secure crossing, but anchoring alone does not compensate for unsuitable soil or inadequate foundation preparation.

Have the support conditions reviewed where required by the project.

Maintenance and Inspection

Cattle guards require periodic inspection, particularly where heavy vehicles or accumulated debris may affect the crossing.

  • Inspect rails and structural members for damage.
  • Check mounting and anchoring components.
  • Remove accumulated soil, vegetation and debris beneath the grid.
  • Inspect surrounding drainage conditions.
  • Check the connection between the guard and fence line.
  • Inspect optional wings and support posts.
  • Look for changes in foundation position or roadway settlement.
  • Address damage before continued heavy vehicle use.

Do not exceed the published rating or operate over a visibly damaged crossing without appropriate evaluation.

Ordering and Freight Delivery

Steel cattle guards are substantial freight items that require advance delivery planning.

When requesting a quote, provide the delivery ZIP code, quantity and any optional accessories.

Also identify whether the site has suitable equipment and personnel to unload the shipment.

Confirm lead time, delivery conditions, unloading requirements and any applicable made-to-order terms before placing an order.

Frequently Asked Questions

How long is this cattle guard?

The listed roadway span is 10 feet.

What is the published load rating?

The manufacturer publishes an H-15 rating of 12 tons per axle.

Does the rating mean any truck can cross it?

No. Vehicle axle loads, configuration, foundation conditions and project requirements must be checked.

Are the rails flat or round?

This model has flat-top rails.

How is the guard supported?

The original description identifies seven 8-inch C-channel support beams.

Can I order cattle guard wings?

Yes. Optional steel wings are available for compatible installations.

What do the wings do?

They help connect the guard to adjoining fencing and discourage livestock from walking around the crossing.

Are precast foundations available?

Yes. The original listing describes compatible precast concrete foundations as an option.

Do precast foundations eliminate all site preparation?

No. Excavation, support preparation, drainage and correct positioning remain necessary.

Can the cattle guard be used on a public road?

Suitability depends on the governing roadway standards, vehicle loads, design and required approvals. An H-15 rating alone does not establish public-road approval.

Will a cattle guard stop every type of livestock?

No. Effectiveness varies by species and installation. Additional fencing or gates may be needed.

Can Barn World provide a delivered quote?

Yes. Provide the delivery ZIP code, quantity, site details and any requested accessories.

Request a Quote for the 10-Foot H-15 Cattle Guard

This 10-foot flat-rail cattle guard offers a published H-15 rating of 12 tons per axle and optional installation accessories for suitable agricultural roadway crossings.

Before ordering, verify the roadway dimensions, expected axle loads, foundation design and unloading arrangements.

Contact Barn World for current availability and a freight quote delivered to your site.

For additional ratings and sizes, explore Barn World's cattle guard selection.
