Because they ship fully assembled, an order of (5) or more is typically required.
****Please call or email for a quote****

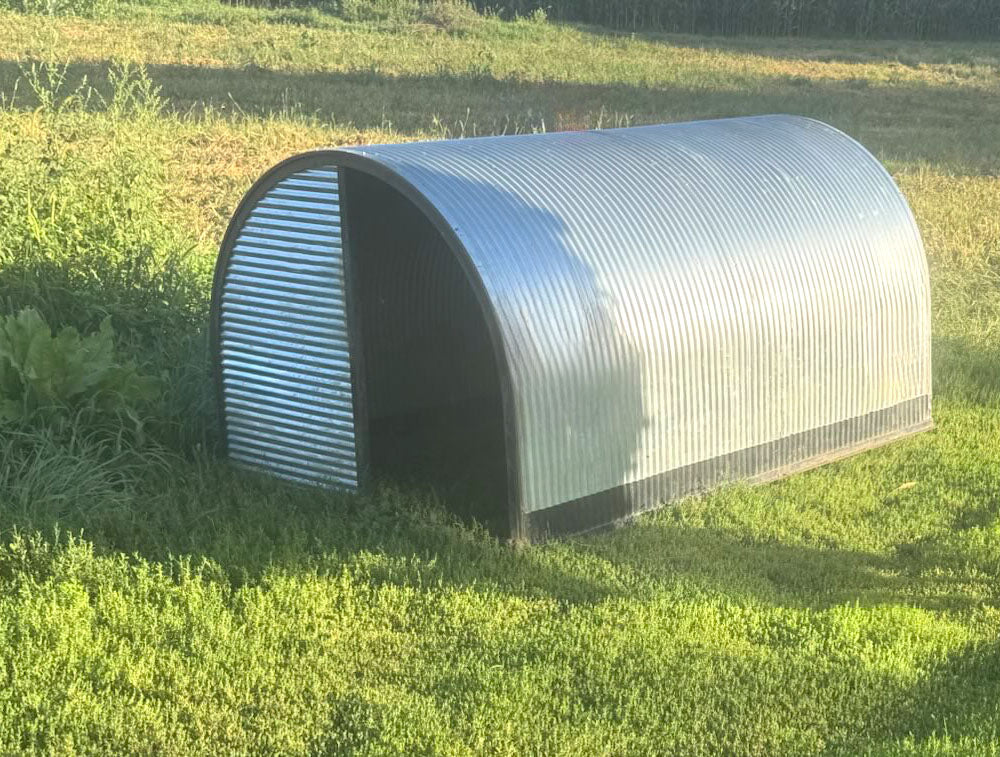

Galvanized Steel Shelter for Calf Housing
This calf hut provides a covered area where young livestock can move out of direct sun, wind, rain and snow. Corrugated galvanized steel is supported by an angle iron frame, with a rear ventilation opening and options for enclosing the front. The shelter measures 7 feet 6 inches long, 4 feet 6 inches wide and 3 feet 10 inches high.

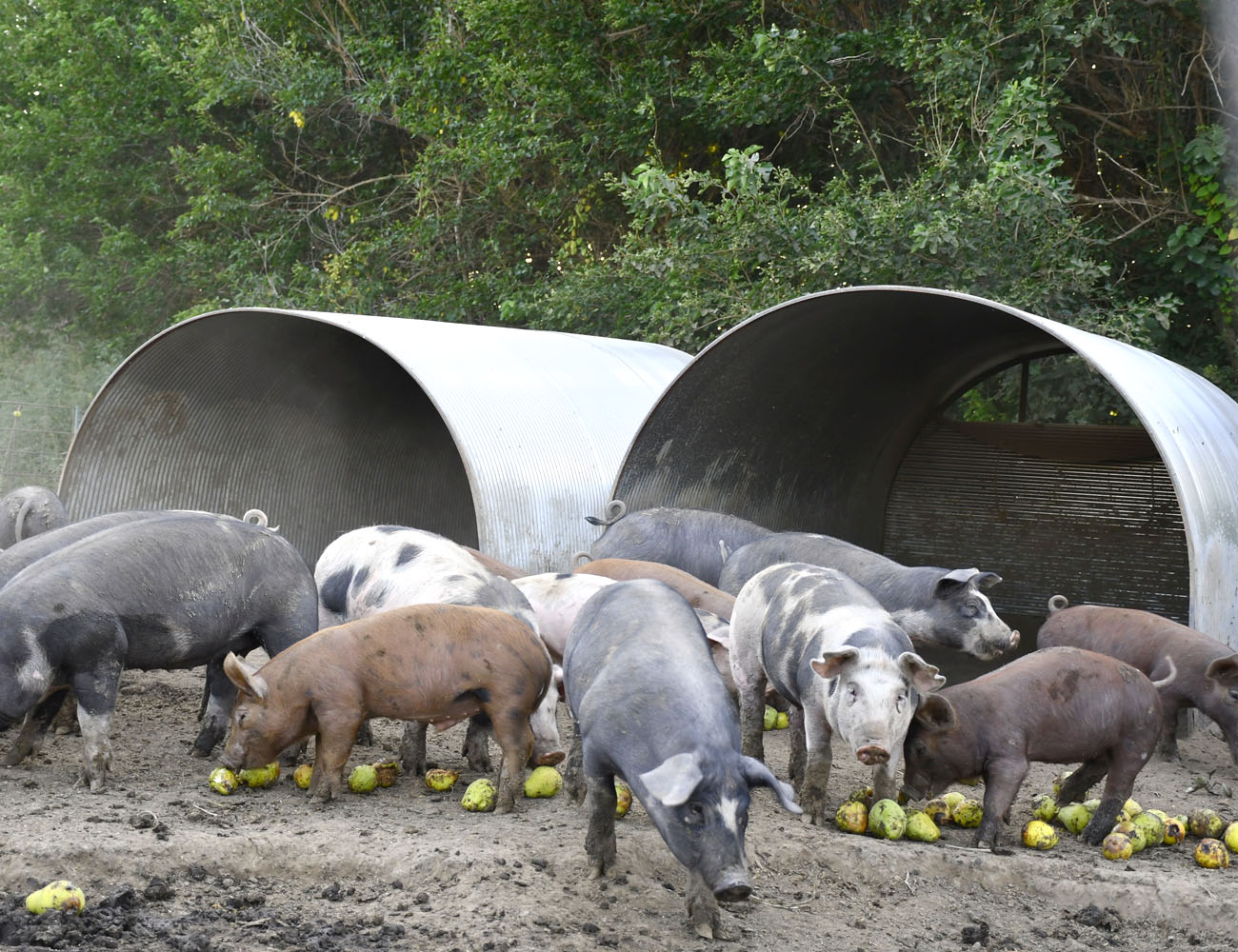

Use the dimensions to assess the fit for your animals and housing layout. Space needs change with animal size and management practices; the hut's footprint alone does not establish an animal capacity. For other small livestock, check the entrance, interior clearance and suitability before ordering.
Included Shelter and Optional Accessories
- Galvanized steel hut with angle iron frame
- Three ground tie-down stakes included
- Rear ventilation opening
- Optional fixed front enclosure or hinged door
- Optional connected pen and bottle holder
- Shelter ships fully assembled
The photos show several configurations, including separately selected front enclosures, pens and feeding accessories. Specify the configuration you need when requesting a quote.
Calf Hut Specifications
| Specification | Details |
|---|---|
| Shelter dimensions | 7′ 6″ long × 4′ 6″ wide × 3′ 10″ high |
| Shelter weight | 145 pounds |
| Construction | Corrugated galvanized steel supported by an angle iron frame |
| Included stakes | Three ground tie-down stakes: one rear and two front |
| Ventilation | Rear-wall ventilation opening |
| Optional front enclosure | Fixed front wall and hinged door options |
| Optional pen panels | 6 feet long × 39 inches high; 1¼-inch outside-diameter round tubing |
| Optional pen weight | Listed at 230 pounds, separate from the shelter weight |
| Other optional accessory | Bottle holder |
| Shipping configuration | Shelter ships fully assembled; units can be stacked for transport |
Front Enclosures, Ventilation and Pen Options
The front can remain open or be fitted with an optional fixed section or door for additional weather protection. Consider airflow as well as coverage when choosing the enclosure. The rear vent provides an opening for air movement; avoid treating a closed front as a substitute for a ventilation plan.
The optional pen creates an enclosed area in front of the hut. Its panels are 6 feet long and 39 inches high, made from 1¼-inch outside-diameter round tubing. These are panel dimensions, not the overall dimensions of the completed shelter-and-pen assembly. A special panel connects the pen to the hut.
Adjacent pens can share a center panel in a connected arrangement. Confirm the required panels and connectors when planning a row of huts. The pen's listed 230-pound weight is separate from the shelter's 145-pound weight.
Calf Hut Animal Shelter Pictures
See how the calf hut can be configured for different weather conditions and calf housing needs, including front enclosures, ventilation, connected pens, and optional accessories.

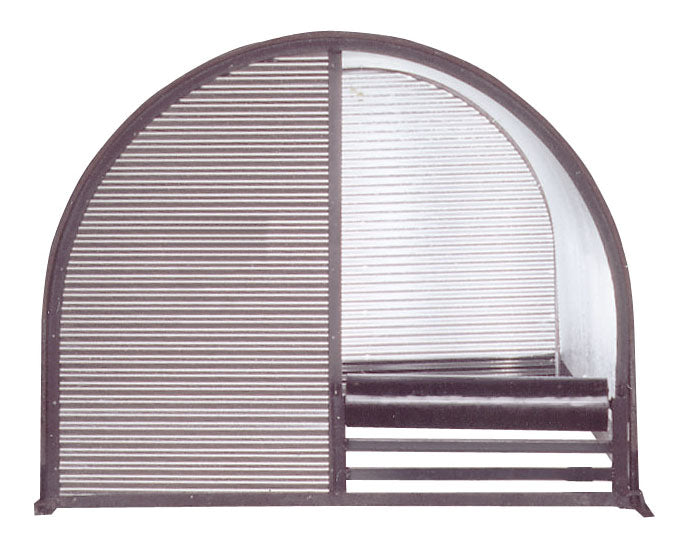

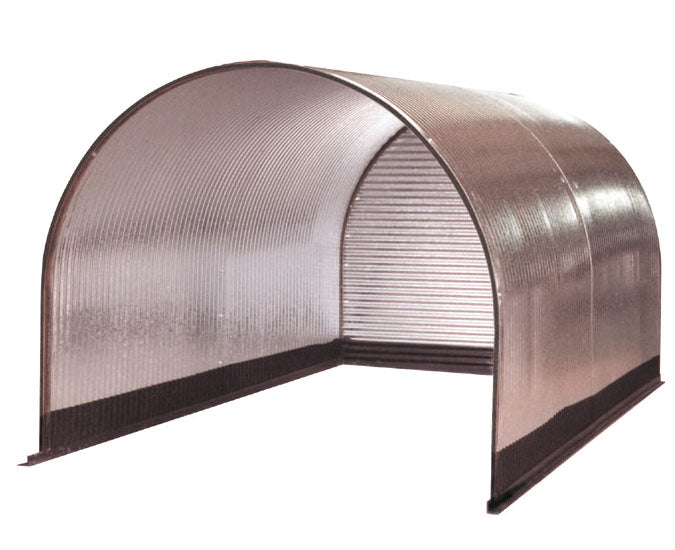

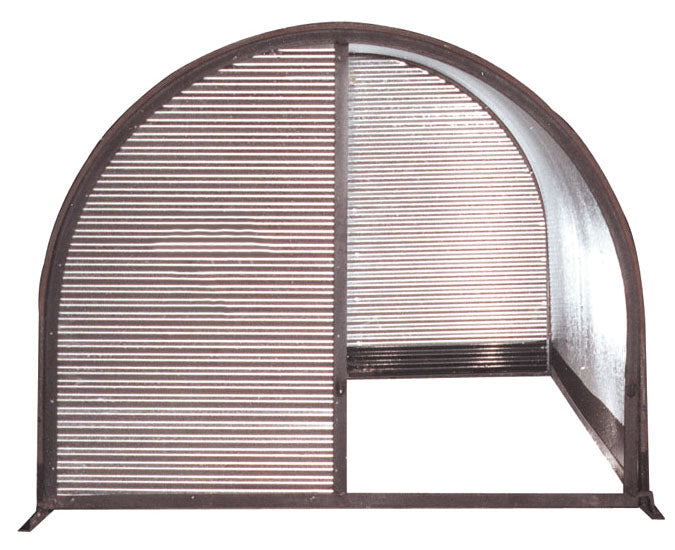

Calf Hut with Front Enclosure
The optional fixed front enclosure adds protection while keeping the front of the calf hut open for easy access.

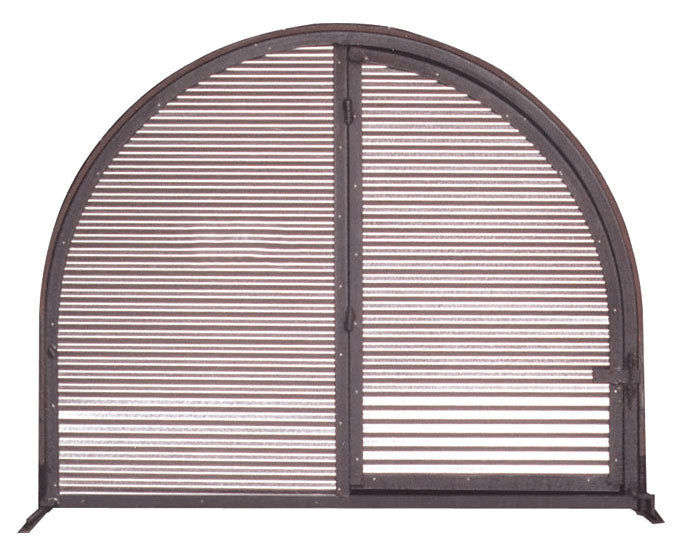

Calf Hut with Front Door
The front can be enclosed with a fixed section and hinged door to provide additional protection from wind, rain, snow, and cold weather.

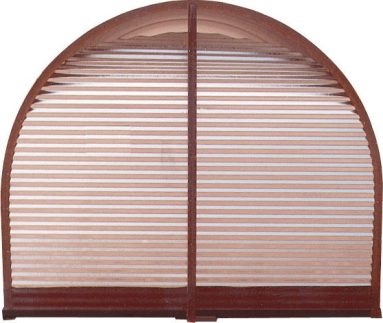

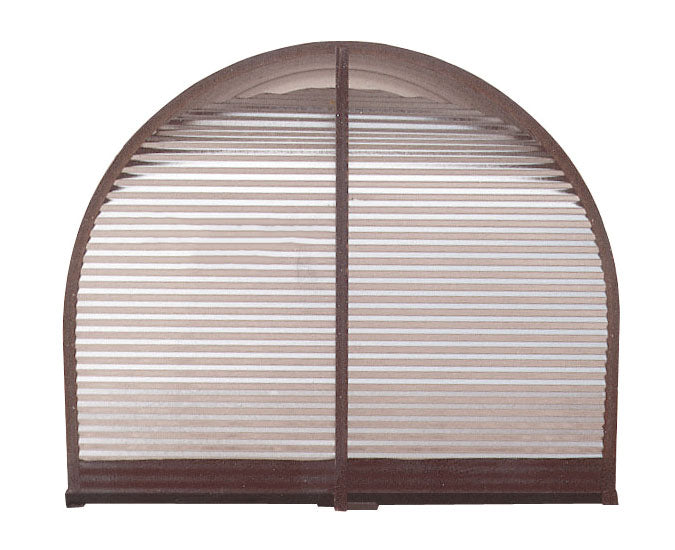

Rear Ventilation
The rear wall includes a ventilation opening to help provide airflow inside the calf hut while the shelter protects calves from outdoor weather.
Calves Using the Shelter
Calves can use the hut as a protected area away from direct sun, wind, rain, and winter weather.

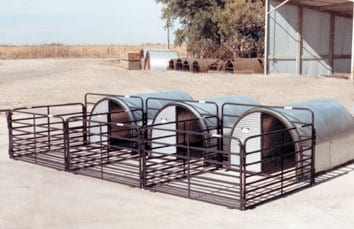

Connected Calf Pens
Multiple pens can be connected to create a larger calf housing area. A shared center panel can serve two adjoining pens, helping save space and hardware.

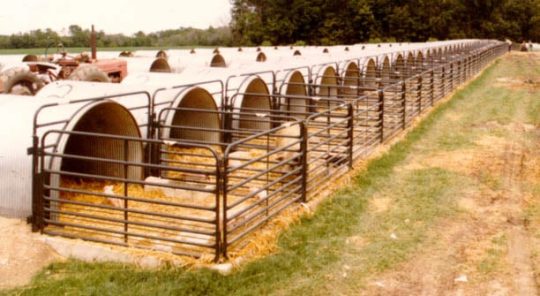

Multiple Calf Huts in a Row
Several calf huts can be arranged together to create an organized calf housing area for larger livestock operations.
Optional Bottle Holder
An optional bottle holder provides a convenient place to keep a calf's feeding bottle close to the shelter.
Calves Inside the Calf Hut
The calf hut gives young livestock a sheltered place to get out of the weather while providing a dedicated area for calf housing.
Planning Your Calf Housing Area
Allow room around each hut for feeding, inspection, cleaning and access to the entrance. Check the combined footprint if adding a pen, and leave practical access between rows rather than planning from the hut dimensions alone.
Choose a suitable, well-drained location and provide bedding appropriate for your calf-housing program. Shelter from the weather works together with dry bedding, ventilation and routine checks; an enclosure alone does not ensure a dry resting area.
Securing the Hut
Three tie-down stakes are supplied: one for the rear and two for the front. Check the ground conditions and installation requirements before placing the shelter in service. The included stakes should not be treated as a universal wind-rating guarantee for every site.
Assembled Delivery and Freight Quotes
The main hut arrives assembled, and multiple units can be stacked for transport. This shipping arrangement is why an order of five or more is typically required, as noted above. Contact Barn World with the quantity, desired accessories and delivery location for a quote.
