Hastings Bottomless Tanks for Livestock Watering

Hastings bottomless stock tanks assemble from galvanized steel wall sections to create a large livestock watering tank at the installation site. They can provide storage between refills in remote pastures when paired with an appropriate water supply and a properly prepared, watertight base.

Choose the diameter, wall height, and steel gauge for your herd, site, and delivery requirements. Confirm the exact dimensions and capacity of the selected model before ordering. The tank does not include a manufactured floor; site preparation and a suitable sealing system are part of the installation.

Stock Tank Capacities

stock tank capacity chart and size comparisons

Bottomless Tank Wall Height and Weight Chart

25.5" Wall			33" Wall
Diameter	Gauge	Weight (lbs)	Diameter	Gauge	Weight (lbs)
15	12	468	15	12	648
15	10	636	15	10	828
20	12	624	20	12	864
20	10	848	20	10	1,104
25	12	780	25	12	1,080
25	10	1,060	25	10	1,380
30	12	936	30	12	1,296
30	10	1,272	30	10	1,656

Use this chart to compare the listed configurations. Confirm current model dimensions and shipping weight with Barn World before planning site work or unloading.

Tank Construction

10-gauge or 12-gauge G90 galvanized steel options.
Rolled top hem and notched panel ends.
Lapped wall seams assembled with butyl sealing tape and double rows of bolts.
Wall-assembly hardware supplied with the tank; use the components and instructions specified for the selected model.

Correct seam preparation, assembly, and sealing are important to performance. Inspect the completed installation and address leaks before putting the tank into service.

Site Preparation and Sealing

Plan a level site, an appropriate supporting base, access for assembly, and a sealing method suitable for the soil and intended use. Obtain model-specific installation requirements from Hastings before beginning work.

Do not assume that a concrete base or soil treatment will remain watertight without proper design and installation. If considering a liner, confirm its dimensions, attachment method, material compatibility, and suitability for livestock watering. An ordinary swimming-pool liner should not be assumed compatible with this tank.

Water Supply and Maintenance

Plan storage capacity around herd demand, refill rate, and the reserve needed between refills. Windmill and solar-powered pumps can have variable output; the tank alone does not guarantee a continuous supply.

Check water levels, refill equipment, seams, and water cleanliness regularly. Include access for cleaning and maintenance in the site plan.

Bottomless Tank Details

The following photos show the tank wall sections, connections, and assembled installations.

Sidewall Close-Up

Tank Wall Connection

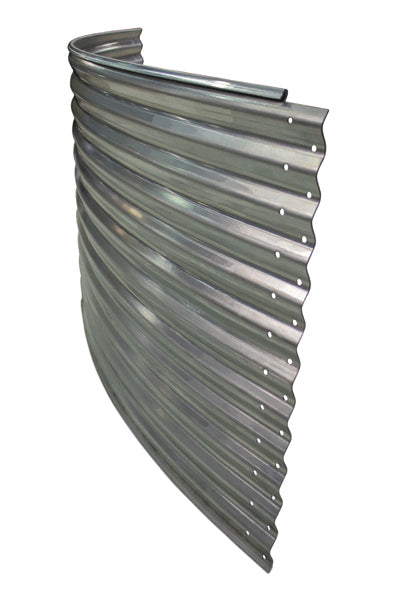

Individual Wall Section

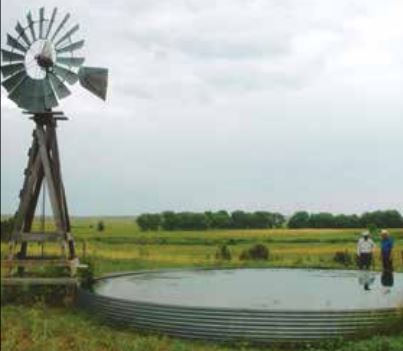

Tank in Use

bottomless tank in a pasture full of water

Assembled Tank

Tank Wall Diagram

Freight and Ordering

These large tanks ship in sections on a pallet. Request a freight quote with the selected model, delivery ZIP code, site access, and unloading requirements. Confirm available unloading services and arrange equipment appropriate to the shipment.

Call, chat, or email Sales@BarnWorld.com for help confirming the configuration and delivery details.

Also compare Sioux Steel bottomless tanks.

Hello I operate a wildlife rehabilitation center in North Idaho. American Heritage Wildlife Foundation I am looking to expand my care for other species that would benefit from large water areas. The option of your product is new to me. It seems it may be a better fit than traditional stock tanks. This may be considered a stupid question, but what is the base lined with? Would I install concrete and seal it? Perhaps with livestock, the option of plastic or rubber is acceptable but not for my application. Thank you for your time.

The bottomless stock tank installations are typically done by setting the walls in concrete or depending on the soil conditions by adding lime to create a bottom. There are liners available on the Sioux Steel bottomless tanks click here.

Do you sell liners for the large bottomless stock tanks?

The liners are available for the Sioux Steel Bottomless Tanks (click here) but not the Hastings Bottomless Tanks (click here).

If you'd like a quote for the Sioux tank with liner, or any of the other tanks, please let us know and we'll be happy to forward one for your review.

How does a bottomless stock tank hold water? What are they lining the bottom with?

There are three popular methods to seal the bottom of the tank:

1. Most common is likely by pouring a concrete bottom and setting the walls in it.

2. A poly liner: TheSioux Steel tanks have linersdesigned specifically for the tanks. It's a black, 36 mil liner with clams to hold it to the top of the walls. combination of 5-7mil black plastic, sand, and bentonite clay to create an artificial pond bottom (cheaper but more dirt work)

3. Customers with proper soil conditions and the ability to work the soil may mix lime, bentonite clay, etc to create a hardened and water-holding bottom for the tank. A contractor familiar with the local soil conditions should be consulted.
