60-Gallon Open-Trough Livestock Waterer
A seven-foot drinking edge can let multiple animals approach a trough along its length, which may be helpful in dairy and feedlot settings. The 60-gallon reservoir provides stored water, but reliable service depends on the incoming flow rate, valve performance and how many animals drink during peak periods. Plan the surrounding space so cattle can approach and leave without crowding into a narrow corner.
Site Drainage and Cleaning
Install on a stable, level surface following the waterer's requirements. Keep the area around the trough drained to reduce mud and slipping. Remove sediment and feed debris routinely, and inspect the valve and plumbing for leaks. Ensure staff can reach the waterer safely for cleaning without entering an occupied handling lane unnecessarily.
Cold Weather and Capacity Questions
Open water is exposed to freezing conditions. If the listing offers a compatible optional heater, confirm the exact part, electrical requirements and installation details before purchasing. Does a 60-gallon tank mean it can only supply 60 gallons per day? No. A functioning automatic refill system can replenish the reservoir; actual daily supply depends on the water source and valve.
Planning a 60-Gallon, 7-Foot Livestock Waterer Installation
This 84-inch-long open-trough waterer provides an extended drinking edge for cattle in dairy facilities, feedlots and other managed watering areas. The listed 60-gallon reservoir, 22-inch width and 22-inch drinking height should be evaluated against animal size, expected peak demand, supply flow and the available concrete footprint. The stated animal capacities are manufacturer reference figures, not a substitute for checking actual water consumption and refill rate.
Constant Flow and Cold-Weather Planning
A continuous water supply is especially important where several animals drink in a short period. Confirm that the supply line, valve and plumbing arrangement can replenish the trough under peak use. In freezing conditions, the listing identifies an optional A162 underground heater, sold separately. Confirm electrical requirements, freeze protection and local installation codes before purchasing heating equipment.
Placement, Cleaning and Service Access
The flat-back design can help the waterer fit against a wall or partition, while the curved front provides animal access. Allow room to open the three service panels and reach the valve compartment. The two 3-inch drains and sloped basin support routine emptying and cleaning. Use the included anchoring hardware as directed and have the plumbing installed by a licensed professional, as required by the product listing.
Frequently Asked Questions
Is the 60-gallon capacity the same as daily water delivery?
No. Capacity is the volume stored in the trough; daily delivery depends on the water supply and refill rate.
Can the waterer be used in winter?
Winter use requires a suitable freeze-protection plan. The optional A162 heater is sold separately; confirm compatibility and installation requirements.
What information is needed for a freight quote?
Provide the delivery ZIP code, quantity and unloading details. Compare open-top livestock waterers for other capacities and layouts.

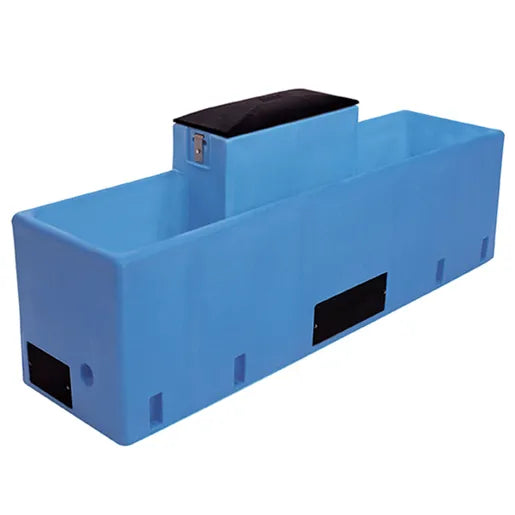

60-Gallon Livestock Waterer - 7' Long – Constant Flow
Keep your cattle hydrated year-round with this 7-foot, 60-gallon constant-flow livestock waterer, ideal for large feedlots, free-stall dairy barns, or beef operations. Its long design provides simultaneous access for multiple animals, while the flat-back construction fits flush against walls or partitions for efficient use of space.
The curved front ensures easy access with minimal water waste, and maintenance is simple with three access panels and a valve compartment that opens without tools. Two large 3-inch drains with a steep slope make cleaning fast and thorough. A rubber gasket keeps the dome airtight, maintaining water quality at all times.
Installation includes stainless steel anchor bolts and a hookup kit, with an optional underground heater (A162, sold separately) for winter use. You can place it between stalls or at the end of single stalls for maximum flexibility, and a 10" concrete riser or neck rail is recommended for best performance.
Key Benefits:
- Durable 60-gallon capacity – keeps multiple cattle hydrated
- A constant-flow system ensures fresh water at all times
- Flat-back and curved front for space efficiency and easy access
- No tools required for valve access – easy maintenance
- Fast drainage with two 3" drains and a steep slope
- An optional heater is available for cold climates
- Stainless steel anchor bolts included for secure installation
- 5-year warranty ensures long-lasting performance
This waterer is a low-maintenance, reliable solution that promotes healthy, productive livestock while saving time and effort.
| 60 Gallon Waterer — Specifications | |
|---|---|
| Livestock Capacity | Up to 100 head of dairy cattle or 200 head of beef cattle (manufacturer's listed figures; actual suitability depends on demand and water supply) |
| Water Capacity | 60 gallons |
| Length | 84 inches (7 feet) |
| Width | 22 inches |
| Drinking Height | 22 inches |
| Constant-flow design · Optional electric heating | |
Note: Must be installed by a licensed plumber. This product can expose you to chemicals, including lead, known to the State of California to cause cancer or reproductive harm.
