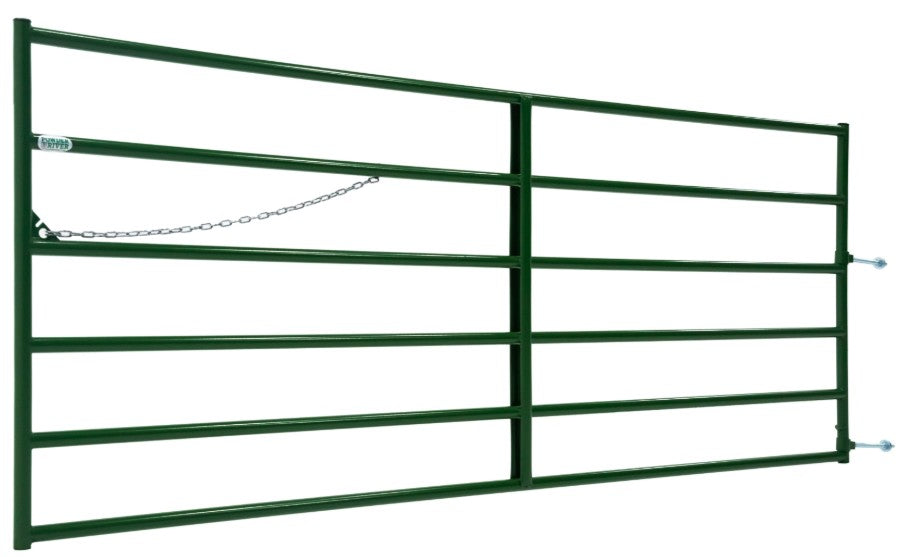

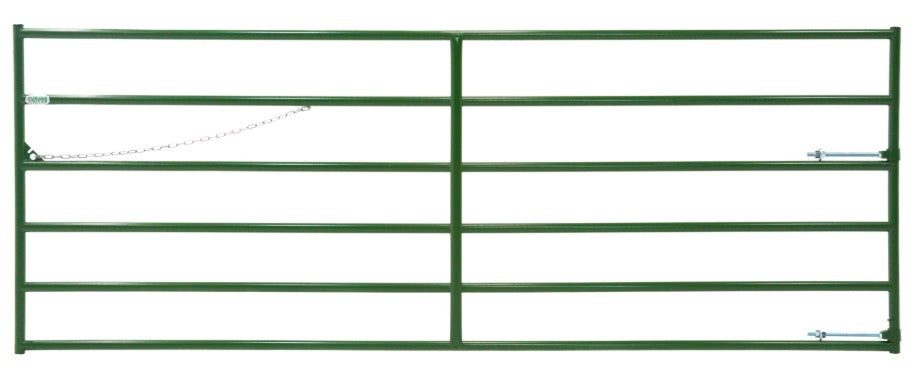

The 1600 Series Gates are heavy-duty cattle gates designed for ranches, farms, pastures, lanes, driveways, and other livestock areas where dependable gate construction is important. Built with a 16-gauge steel tube frame, six horizontal rails, and high-tensile formed vertical stays, these livestock gates provide the strength needed for everyday ranch use while remaining practical for general-purpose fencing applications.
Available in lengths from 4 to 16 feet, the gates can be used for pasture entrances, livestock lanes, farm driveways, and cattle handling areas where limited crowding is expected. The 52-inch gate frame provides substantial coverage, while the installed height is approximately 64 inches when properly hung.
Heavy-Duty Construction for Ranch and Farm Use
The gate frame is constructed from 1.66-inch outside-diameter, 16-gauge steel tubing. Six horizontal rails provide the primary structure across the gate, while high-tensile formed vertical stays add support. The vertical stays are formed with an arch profile and are positioned on both sides of the gate, helping reinforce the gate without creating a bulky appearance.
This combination makes the 1600 Series a practical choice for cattle gates and general livestock fencing where a stronger gate is needed than a basic utility gate. The construction is suited to permanent ranch installations as well as applications where gates are frequently opened and closed for access to pastures, pens, lanes, or farm roads.
Choose the Hinge Style for Your Installation

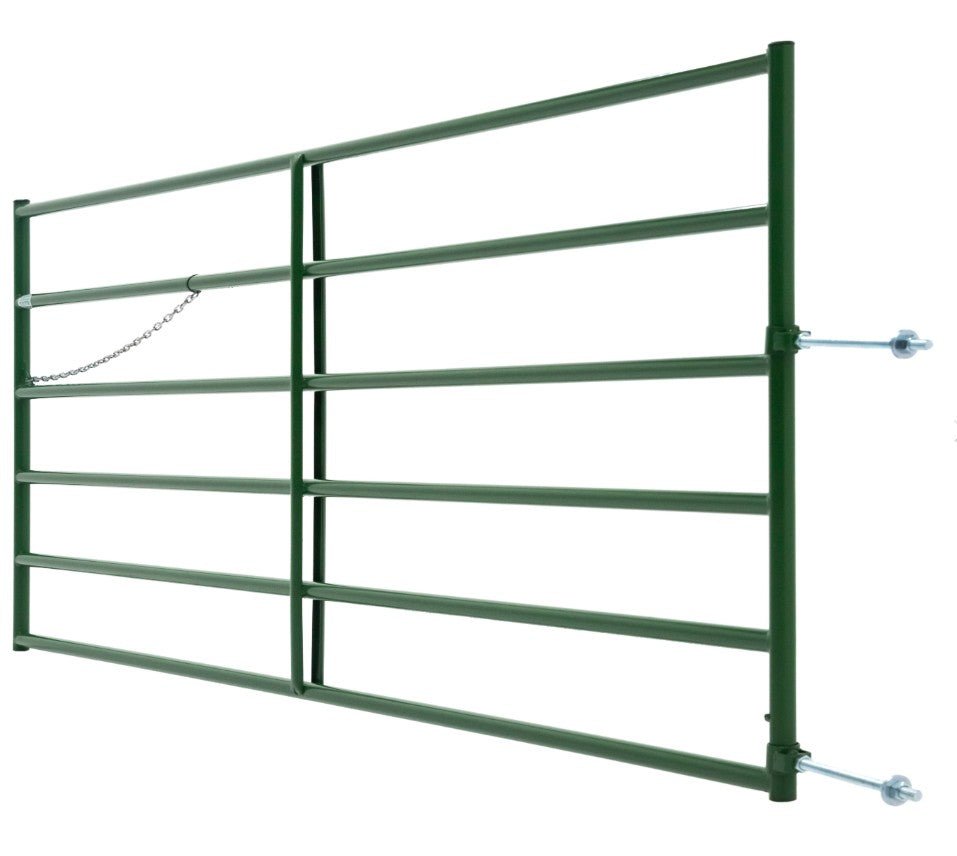

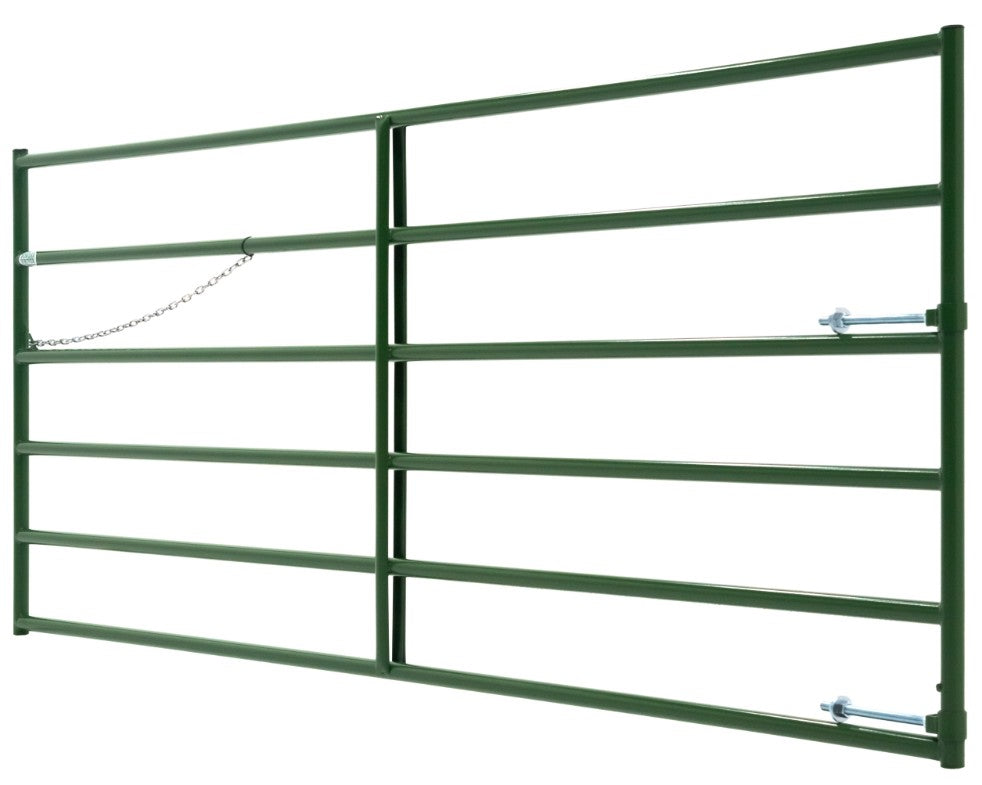

Two hinge configurations are available to accommodate different installation preferences. The threaded-bolt hinge uses a 3/4-inch by 12-inch threaded bolt, while the 180-degree hinge provides a wide swing range. Both options are designed for installation with either wood or steel posts.
The choice of hinge can depend on the gate location, post configuration, and the amount of swing needed. When selecting a gate, be sure to consider the available opening, post placement, and the direction in which the gate needs to swing.

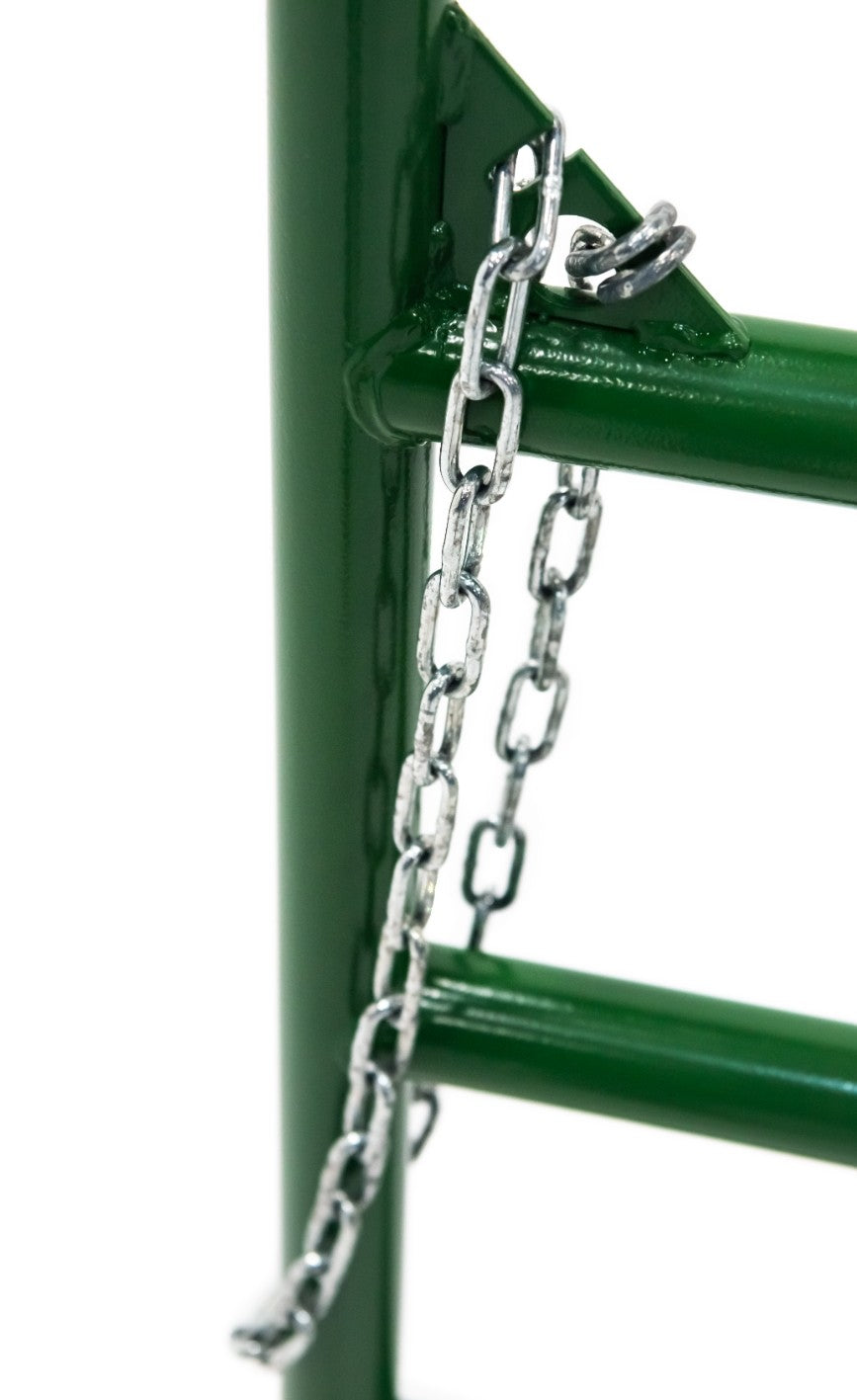

Chain Latch with Ground-Level Access
Each gate uses a chain latch closure that can be operated from the ground. The chain-and-keeper design provides a straightforward way to secure the gate when moving cattle, maintaining pasture access, or closing off a driveway or livestock area.
An optional bolt-on lever latch can also be used when horseback operation is desired. This provides another option for ranchers who need to open or close a gate without dismounting.
Available Gate Lengths
1600 Series livestock gates are available in seven standard lengths: 4, 6, 8, 10, 12, 14, and 16 feet. This range makes it possible to match the gate to openings ranging from smaller livestock access points to wider pasture and driveway entrances.
Shorter gates can be useful for smaller openings and interior access, while the longer 12-, 14-, and 16-foot gates provide wider access for equipment, vehicles, and livestock movement. Select the gate length that most closely matches the finished opening between your posts, allowing for the space required for the hinges and latch.
1600 Series Gate Specifications
| Gate Frame Height | 52" before hanging |
|---|---|
| Installed Height | Approximately 64" when hung |
| Frame Tube | 1.66" OD, 16-gauge steel tube |
| Horizontal Rails | 6 rails, 1.66" OD, 16-gauge tube |
| Vertical Stays | High-tensile formed vertical stays, double-sided |
| Latch | 33" chain with keeper |
| Hinge Options | 3/4" x 12" threaded-bolt hinge or 180° hinge |
| Post Compatibility | Wood or steel posts |
| Available Lengths | 4', 6', 8', 10', 12', 14', and 16' |
| Gate Weights | Approximately 34 to 115 lbs., depending on length |
Gate Sizes and Weights
The available gate sizes and corresponding weights are listed below. Weight varies by gate length, while the two hinge configurations use the same standard length range and published weights.
| Gate Length | Product Number – Threaded-Bolt Hinge | Product Number – 180° Hinge | Approx. Weight |
|---|---|---|---|
| 4' | 033-16004 | 033-18004 | 34 lbs. |
| 6' | 033-16006 | 033-18006 | 46 lbs. |
| 8' | 033-16008 | 033-18008 | 62 lbs. |
| 10' | 033-16010 | 033-18010 | 75 lbs. |
| 12' | 033-16012 | 033-18012 | 89 lbs. |
| 14' | 033-16014 | 033-18014 | 103 lbs. |
| 16' | 033-16016 | 033-18016 | 115 lbs. |
Where to Use 1600 Series Livestock Gates
These gates are designed as versatile ranch and farm gates rather than being limited to one type of livestock facility. They are well suited for pasture entrances, farm lanes, driveways, livestock areas, and other locations where a strong, dependable gate is needed.
They can also be used in areas where livestock may need to be moved through an opening without the gate being part of a high-intensity crowding system. The combination of six horizontal rails, formed vertical stays, and a 52-inch gate frame provides a substantial barrier for everyday cattle and livestock management.
Installation Considerations
The gates can be installed on either wood or steel posts. Before ordering, measure the opening carefully and consider the space required for the hinge side, latch side, and desired swing direction. The 180-degree hinge option can be useful where a wider gate swing is preferred, while the threaded-bolt hinge provides a traditional hinge arrangement with a 12-inch threaded bolt.
Properly sized and securely installed posts are important for supporting the gate, particularly with the longer 12-, 14-, and 16-foot models. Post placement should account for the gate's overall length and the hardware required for the selected hinge and latch arrangement.
A Practical All-Around Cattle Gate
For ranchers and livestock owners looking for a durable gate for everyday farm and pasture use, the 1600 Series combines heavy-duty steel tubing, high-tensile vertical supports, multiple length options, and two hinge configurations in one versatile gate design. The 4- to 16-foot size range makes it suitable for everything from smaller livestock access points to wide pasture and equipment openings.
Whether you need a cattle gate for a pasture entrance, a ranch gate for a lane or driveway, or a livestock gate for a general farm application, the 1600 Series provides a straightforward design built around strength, practical operation, and installation flexibility.
